清洁剂测试仪

Providing a simple solution for repeatable, sensitive laundry and dishwasher detergent testing, Copley’s TRG 800i offers rapid and reliable testing for formulation, QC and comparative performance testing applications.

TRG 800i

Robust metal case with advanced corrosion protective coating

Intuitive touchscreen control with icon-based menu structure simplifies operation and clearly displays test parameters throughout run

Unidirectional and/or bidirectional agitator pattern for the most representative cycle testing

Independent digital heater/circulator maintains a constant temperature and minimises vibration

Optional: Refrigeration unit for cold cycle testing (>10°C)

‘Easy-Centre’ centring system for precise vessel positioning

Easy-clean Viton® membrane-sealed zero-evaporation lids included as standard

PT100 temperature probe monitors bath and vessel temperature with electronic calibration feature

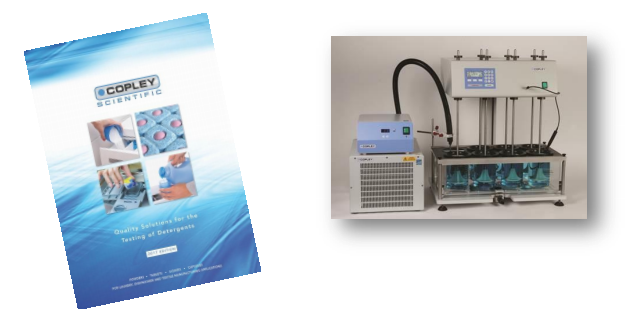

TRG 800i – Detergent Tester

The TRG 800i is supplied with resin paddles as standard.

We also offer optional paddles with holes for fabric attachment (catalogue number: 6404A), which accept up to 12, 5 cm x 5 cm or 6, 8 cm x 8 cm swatches, meaning the TRG 800i can test between 48 or 96 individual swatches simultaneously (42 or 84 where refrigeration unit used).

A separate attachment is also available for the evaluation of detergents used in domestic dishwashers (see TRG 800i Accessories below for further details).

Catalogue Number:

6431

ASTM Standard Compliance

D3050-07 Measuring Soil Removal from Artificially Soiled Fabrics

D4008-95 Measuring Anti-Soil Deposition Properties of Laundry Detergents

Number of Test Stations:

Up to 8

Heater Temperature Range

Ambient – 70°C (10°C – 70°C with optional Refrigeration Unit)

Agitator Speed Range:

20 – 220 rpm

Set of 8 SS Paddles with holes for fabric attachment Catalogue Number:

6404A

Dishwasher Slide Accessory for Tergotometer Catalogue Number:

6408

Unit Dimensions (w x d x h):

728 x 490 x 772 mm (TRGi unit only)

260 x 330 x 150 mm (heater)

350 x 470 x 300 mm (refrigeration unit)

TRG 800i亮点

与传统家用电器相比,测试效率最多可提高8倍

精密控制测试参数,确保准确, 可再现的清洁剂测试

比标准家用电器能耗更低

每次试验的所需材料, 水和清洁剂的用量比传统电器更少

与传统设备相比,紧凑型台式设备设计节省了宝贵的实验室空间

数据报告输出选项丰富:RS 232, USB A和USB B

清洁剂测试仪应用

  • 评估肥皂清洁剂等产品的有效性
  • 评估织物和其他材料的耐洗性和色牢度
  • 优化清洁剂的洗涤条件(例如:温度和水硬度)
  • 去污的常规筛除
  • 评估漂白, 软化和起泡
查看洗涤剂手册
