片剂硬度测试(断裂力)

从生产车间使用的简单手持式设备到用于 高级分析的半自动设备, Copley推出的硬度仪能满足每位分析师的需求。

TBF 100i

In-built guard for safe operation

Robust metal case with advanced corrosion protective coating

Intuitive touchscreen control with icon-based menu structure simplifies operation and clearly displays test parameters throughout run

friability tester , friability test for tablets , tablet testing , friability testers

In-built thermal printer for quick checks of test results and calibration data

Small unit footprint saves precious benchtop space

Convenient in-built tablet waste drawer for dust-free tablet disposal

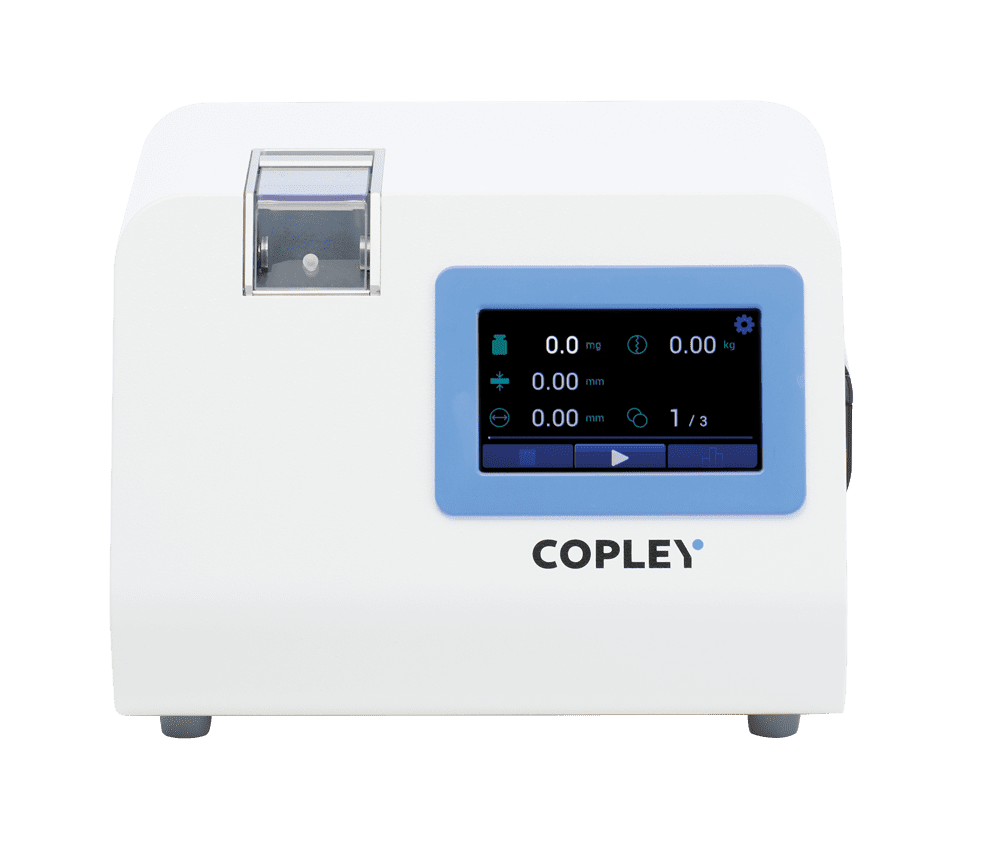

TBF 100i

Combining the economy of a simple, easy to use hardness tester with the accuracy of microprocessor-controlled data collection, the compact TBF 100i hardness tester delivers precise tablet hardness and diameter measurements.

Offering high tablet throughput, the intuitive touchscreen user interface of the TBF 100i streamlines test set-up procedures for users, whilst the built-in data processor provides analysts with tablet breaking force statistical analyses at the touch of a button. Tablet thickness and weight can also be recorded (optional).

Catalogue Number:

2532

Pharmacopoeial Compliance:

Ph. Eur. 2.9.8

USP <1217>

Max. Tablet Diameter:

36 mm

Force Range:

0 – 490 N

Statistics Reporting:

Yes

Batch Testing:

Yes

Portable:

No

Unit Dimensions (w x d x h):

283 x 237 x 208 mm

TBF 100i主要亮点

符合欧洲药典和美国药典要求

直观触摸屏控制,简化操作

可选断裂力测量单位

断裂力应用:恒速

占地面积小,节省宝贵工作台空间

数据报告输出选项丰富:RS 232和USB B

可选:自动输入片剂重量和厚度数据

TBF 100i Tablet Hardness Tester

播放视频

TBF 100i合规与维护

  • 药典符合性证书欧洲/美国药典合规证书
  • 提供全套IQ/OQ/PQ文档包和工具包
  • 可选校准装置提供密码保护的静态校准程序
  • 储存最新的校准信息,可随时打印

可选片剂断裂力测量单位:

  • 千克(Kg)
  • 千磅(Kp)
  • 牛顿(N)
  • 磅(lbs)

Choice of tablet

  • 断裂力(硬度)
  • 直径
  • 重量(可选)
  • 厚度(可选)

密码保护

  • 加载速度和断裂检测百分比均可设置,但受密码保护,防止未经授权的人员调整设定值
