栓剂测试

Copley推出的HDT系列产品适用于评估半 固体制剂药物释放。 该系列包括创新的干热系统和更 传统的水浴加热系统。

HDT 1000

通过易用型薄膜键盘进行控制,背光LCD屏幕清晰显示试验参数

Up to 10 cells accommodated per test run

Easy to access sampling ports

Insulation helps maintain temperature stability

Heating block eradicates use of water-jacketed cells

Small unit footprint saves previous benchtop space

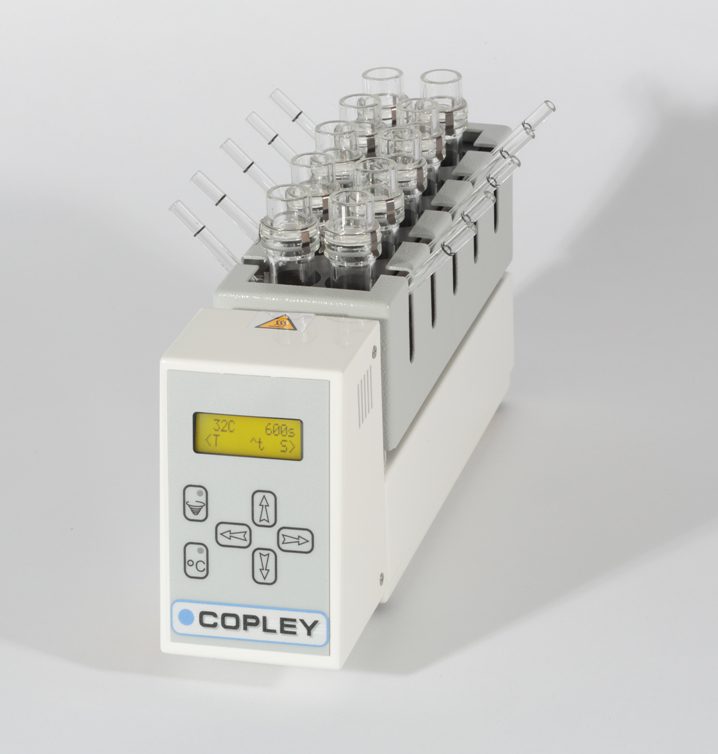

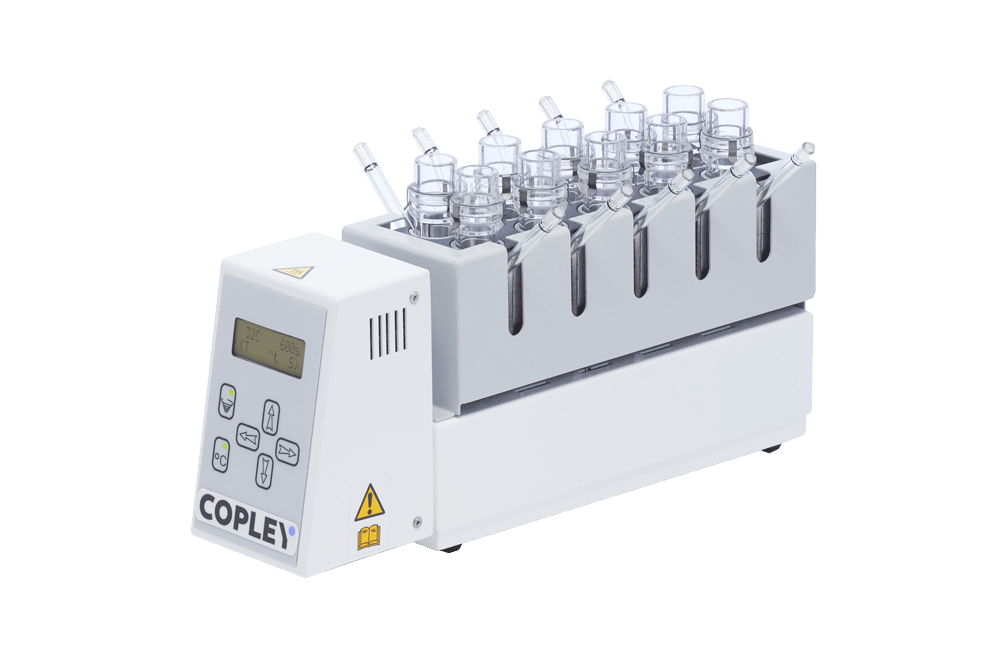

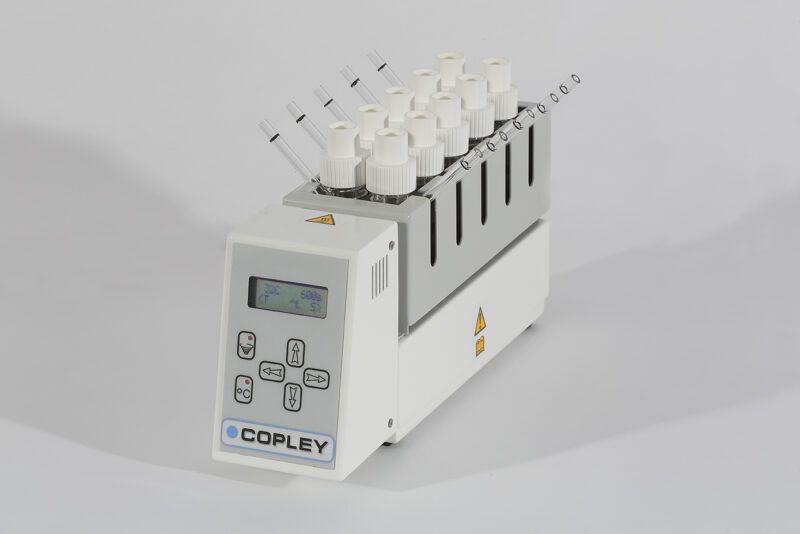

HDT 1000

With a precision dry heating system and integrated powerful magnetic stirrers, the compact HDT 1000 vertical diffusion cell tester from Copley has become the benchmark system for many labs.

Using an innovative heating block approach, the HDT 1000 eradicates the difficulties and the “spaghetti” of tubing associated with water-jacketed cell systems and accommodates either endpoint or discrete manual sampling techniques. A dedicated stirrer mounted beneath each station ensures thorough mixing throughout testing for accurate sampling.

Catalogue Number:

7290

Pharmacopoeial Compliance:

USP <1724>

Cell Capacity:

Up to 10 vertical diffusion cells

Cell Types Supported:

B, C and Skin

Heating System:

Dry heating block

Sampling Technique Compatibility:

Endpoint, Discrete, Fully automatic

Unit Dimensions (w x d x h):

80 x 325 x 145 mm

HDT 1000主要亮点

符合美国药典要求

创新干式加热系统消除了与水加热系统相关的问题,也无需使用空心管

精密控制所有试验参数

新颖的扩散池夹钳简化扩散池准备工作

强大的磁力搅拌器确保在试验过程中均匀混合

HDT装置的占地面积小于一张A4纸

相关配件

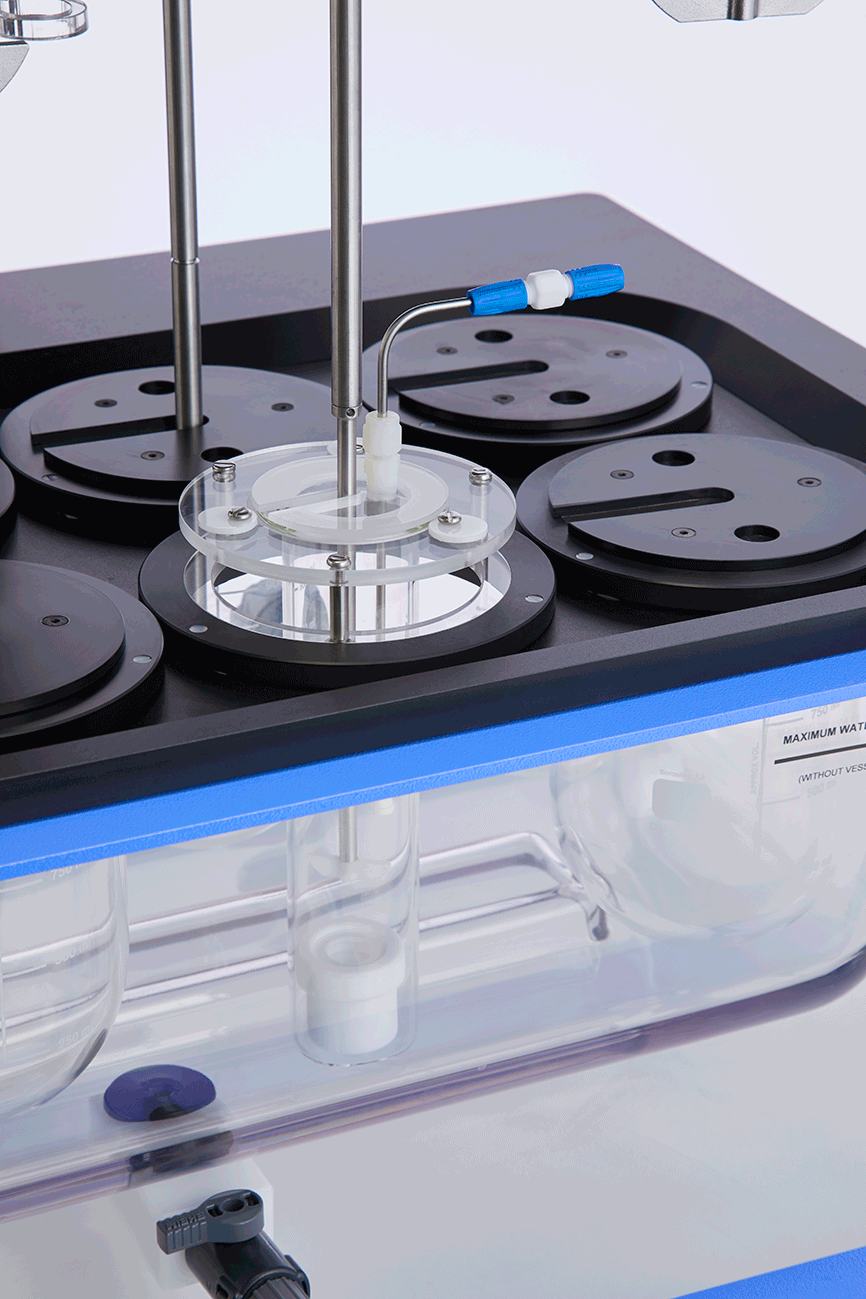

浸没池

  • 浸没池(美国药典A型)可以代替立式扩散池或Franz池进行半固体测试,并与进行溶出度测试的常规美国药典装置2一起说明。
