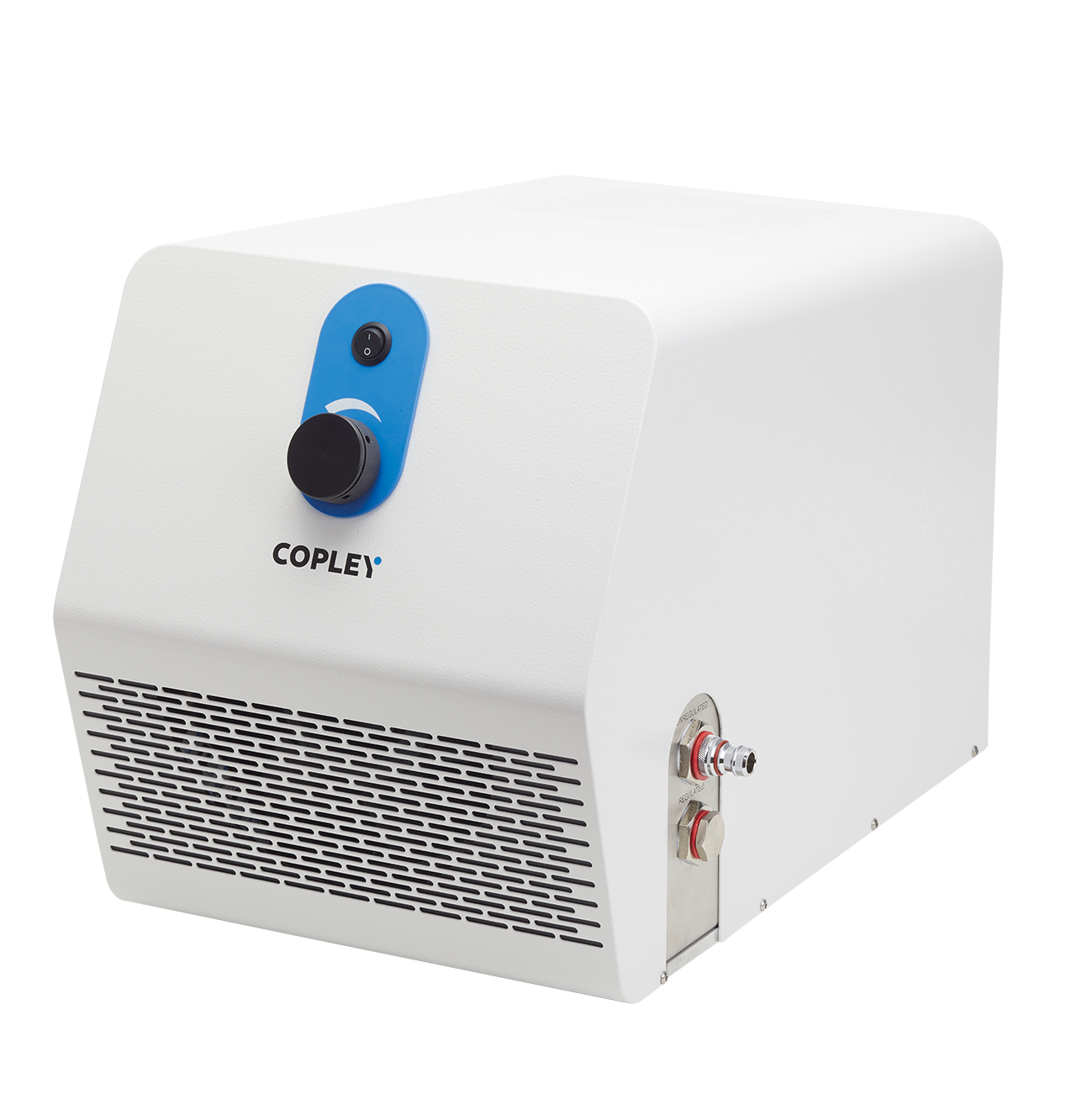

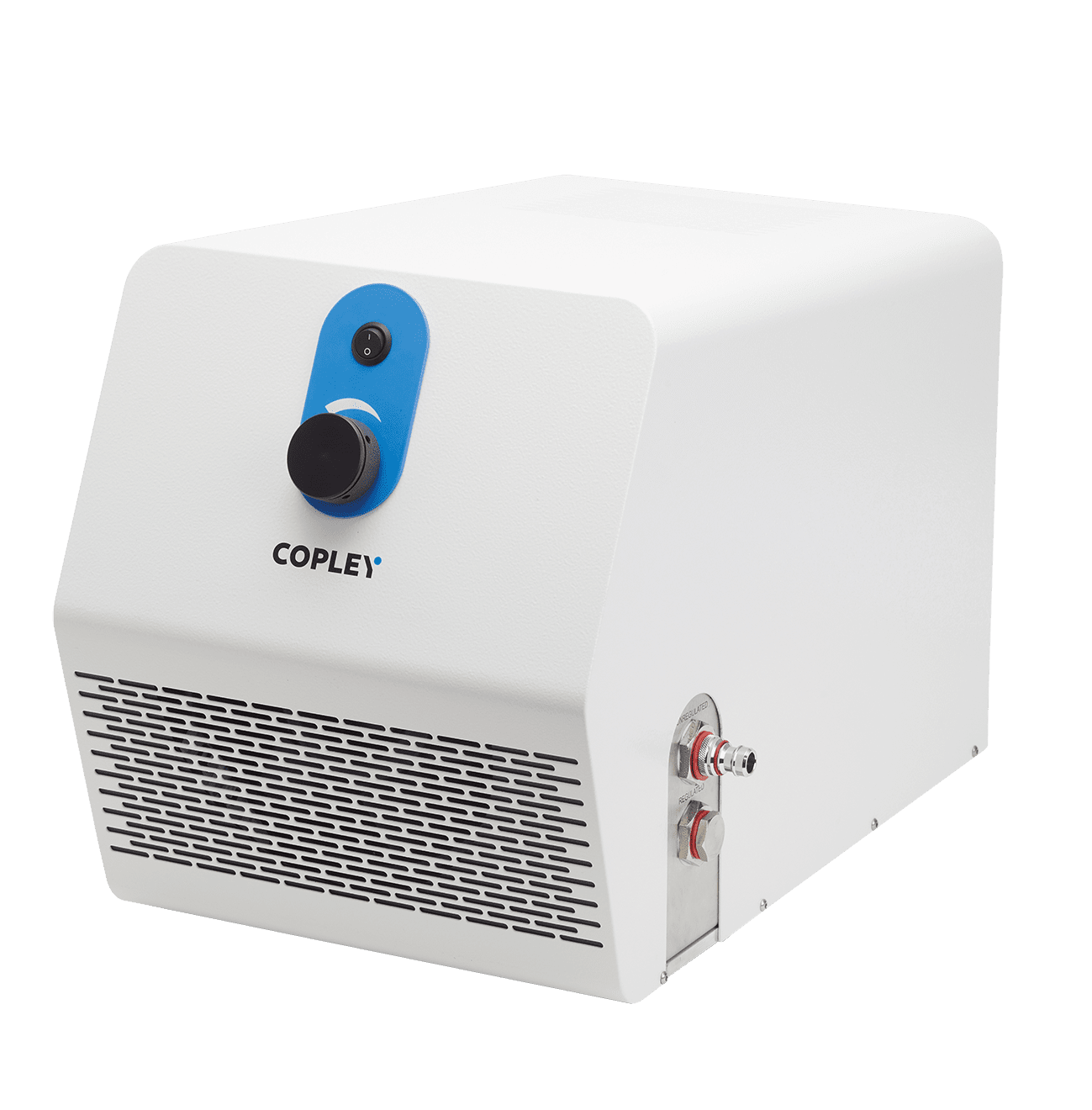

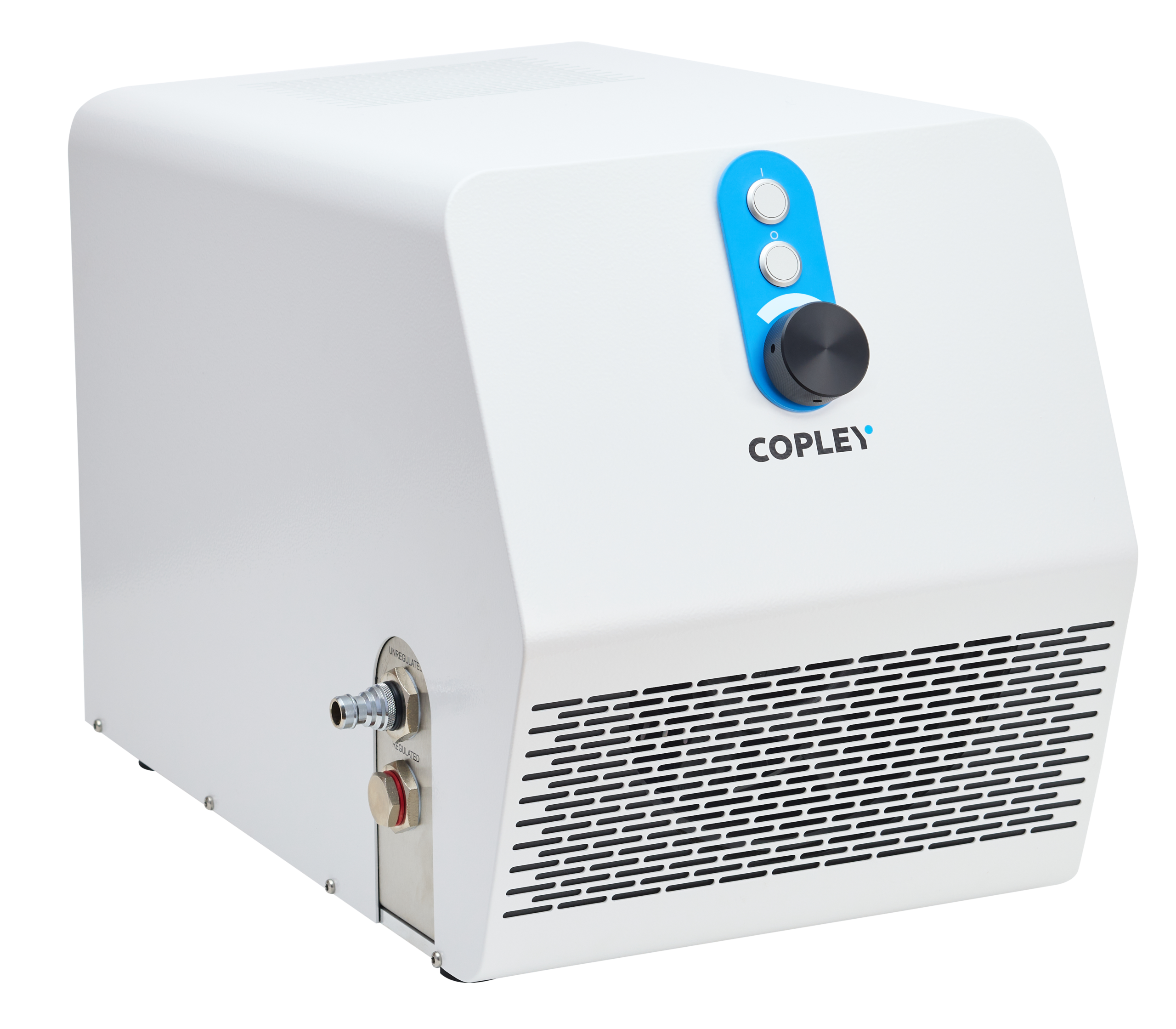

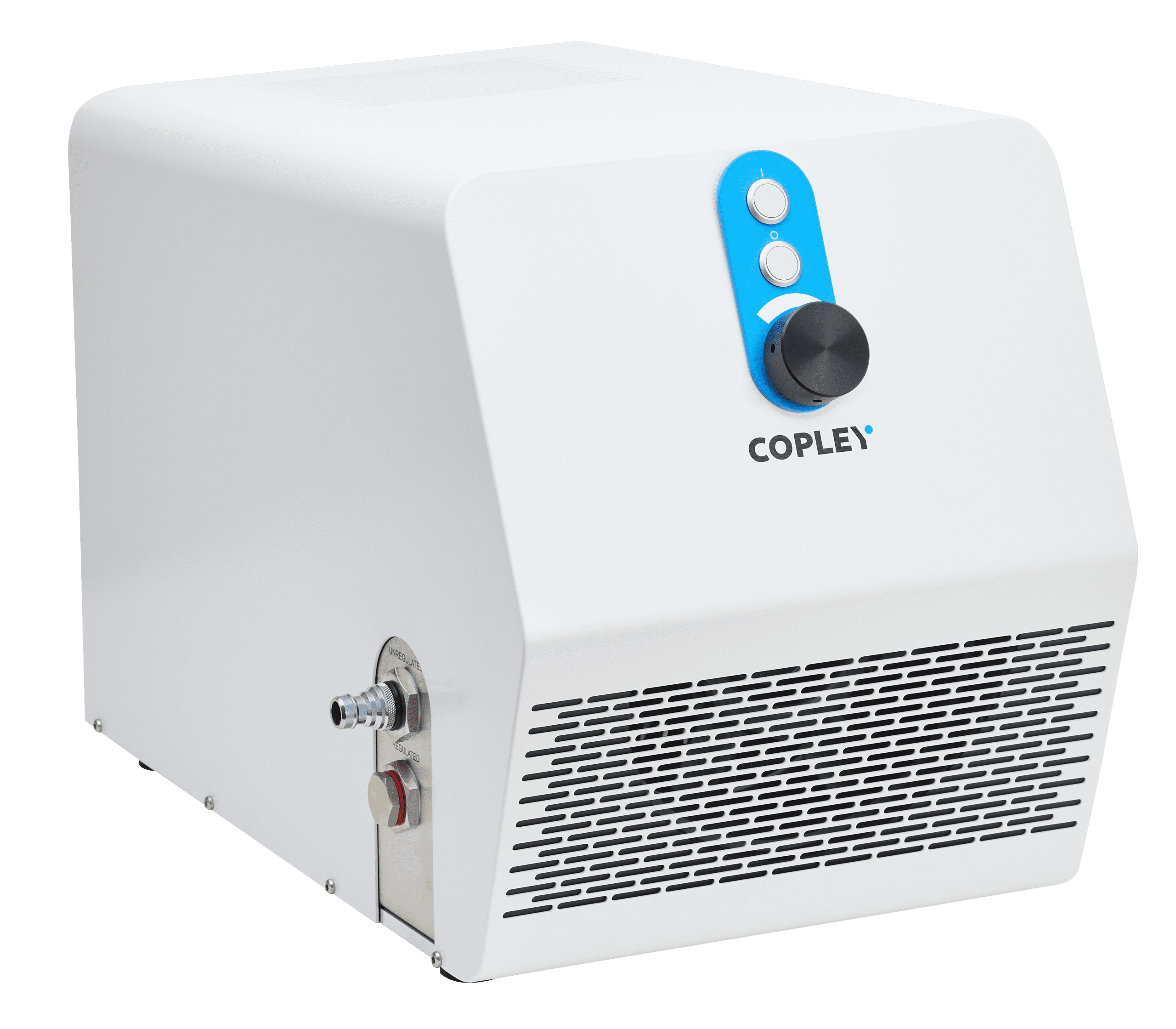

HCP6 – 大容量真空泵
HCP6高容量泵是一款非常成熟的大容量泵，可以满足DPI对更高声波流量的试验要求，这款泵同样非常适合MDI， 鼻喷雾剂和雾化吸入剂试验。HCP6的最大流量可达416升/分钟，但该流量依然不够大。
Low maintenance
Small unit footprint
Oil-free
Left and right vacuum inlets – choose where to place pump in system
Self-sealing compound carbon vanes continually adjust so that the pump effectively performs with ‘as new’ efficiency throughout its service life
Boost Performance
Where the flow rate produced by the HCP6 is still not adequate, it is possible to connect a second HCP6 to the primary pump to give a maximum unregulated flow rate of up to 833 L/min, for example when testing DPIs under sonic flow conditions with the NGI, at high flow rates. Appropriate hose fittings are supplied with all HCP6 units to allow them to be operated in this way.
|
HCP6 Technical Specifications
|
1 x HCP6
|
2 x HCP6
|
|---|---|---|
|
Type:
|
Rotary vane
|
Rotary vane
|
|
Lubrication:
|
Dry
|
Dry
|
|
Max. flow in L/Min (unrestricted):
|
416
|
833
|
|
Max. sonic flow through NGI:
|
80
|
100
|
|
Max. vacuum level:
|
<15 kPa
|
<15 kPa
|
|
Applications
|
MDIs, DPIs, Nebulisers, ADIs, Nasal Sprays, Nasal Aerosols, Nasal Powders
|
DPIs
|
|
Routine maintenance:
|
None
|
None
|
|
Dimensions (w x d x h):
|
322 x 580 x 390 mm
|
750 x 580 x 390 mm
|
