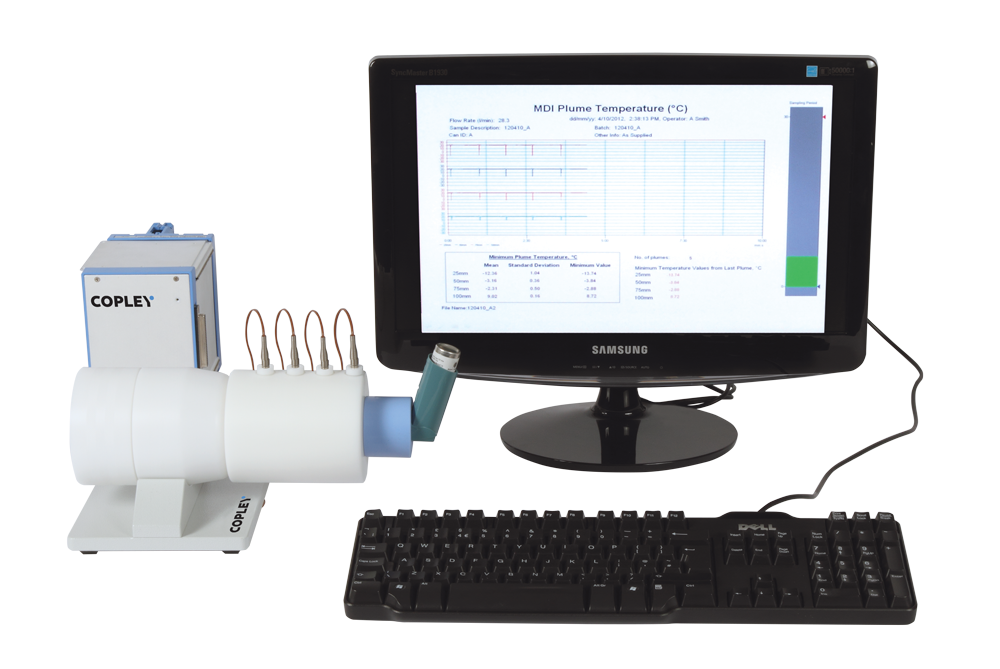

Plume Temperature Tester Model PTT 1000

The Plume Temperature Tester Model PTT 1000 consists of a polypropylene sampling tube, which has the same internal dimensions as the horizontal section of the USP Induction Port. The temperature profile of the plume is measured by 4 centrally aligned thermocouples mounted vertically at 25 mm, 50 mm, 75 mm and 100 mm from the inlet and linked to a data acquisition system under the control of a PC. The thermocouples are easily removed for cleaning and calibration.
