Powder Testing

Copley offers a range of tools for all Pharmacopoeial assessments of powder flow and density, including equipment to assess flow through an orifice, angle of repose, shear cell as well as compressibility index and Hausner ratio.

Please select a JVi Series tester for further product information

JV 100i JV 200i

Various cylinder sizes available

Easily removable platforms for changing between methods

Intuitive touchscreen control with icon-based menu structure simplifies operation and clearly displays test parameters throughout run

friability tester , friability test for tablets , tablet testing , friability testers

Small footprint saves precious benchtop space

Robust metal case with advanced corrosion protective coating

JV 100i

A high reliability solution for routine measurement of the tapped density of powders, granules and similar products, the Copley JVi Series of testers offers all three methods specified in Eur. Ph. and USP.

The JVi tapped density series provides detailed reports, including Hausner ratio calculations for a wide range of industrial standards.

The JV 100i is a single-station tapped density system, supporting all associated attachments for all 3 USP Methods.

Catalogue Number:

1631

Pharmacopoeial Compliance:

Ph. Eur. 2.9.34

USP <616>

Eur. Ph and USP Test Methods Supported:

1, 2, 3

Number of Test Stations:

1

Unit Dimensions (w x d x h):

260 x 347 x 562 mm

(with 250 mL cylinder)

Please select a JVi Series tester for further product information

JV 100i JV 200i

Various cylinder sizes available

Easily removable platforms for changing between methods

Intuitive touchscreen control with icon-based menu structure simplifies operation and clearly displays test parameters throughout run

friability tester , friability test for tablets , tablet testing , friability testers

Robust metal case with advanced corrosion protective coating

Small footprint saves precious benchtop space

JV 200i

A high reliability solution for routine measurement of the tapped density of powders, granules and similar products, the Copley JVi Series of testers offers all three methods specified in Eur. Ph. and USP.

The JVi tapped density series provides detailed reports, including Hausner ratio calculations for a wide range of industrial standards.

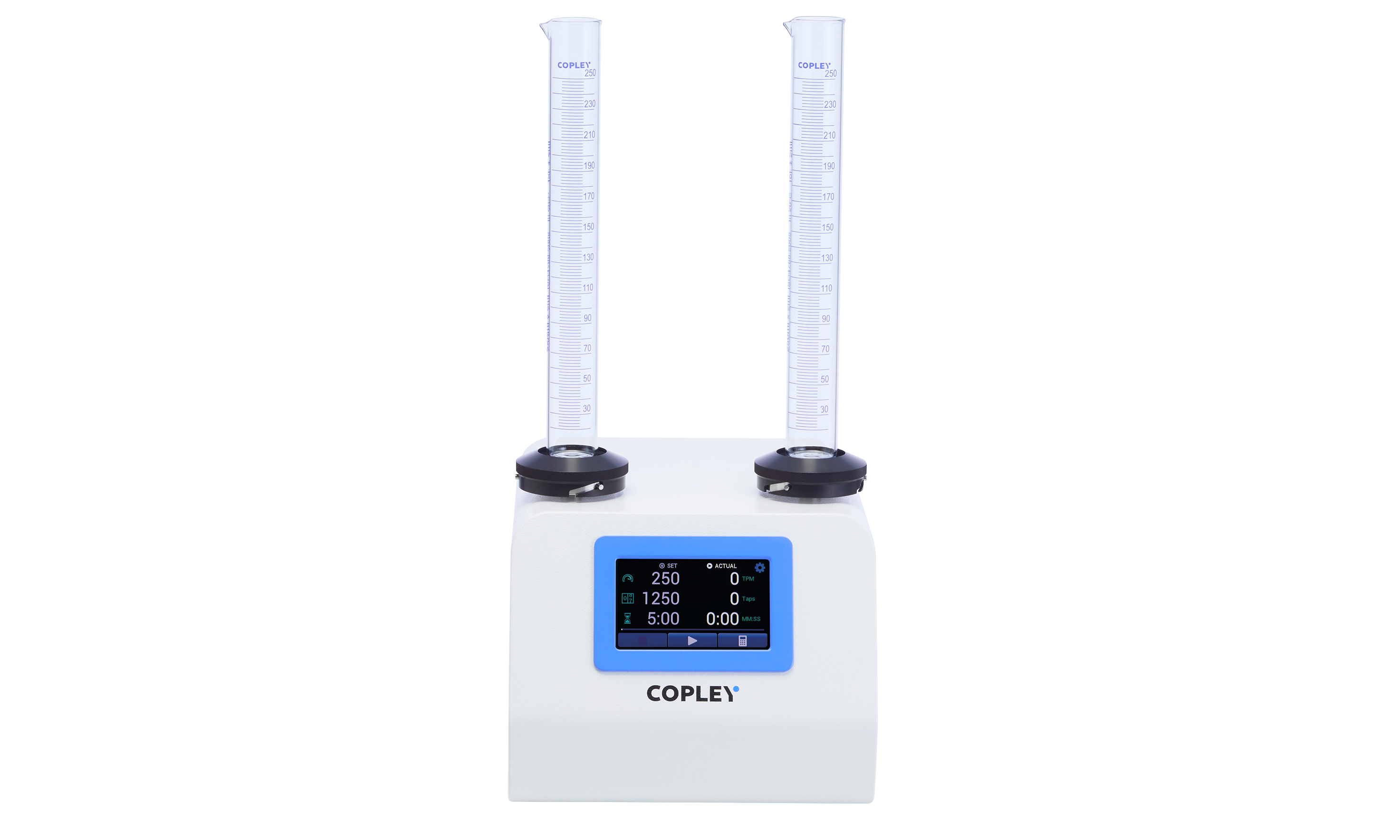

The JV 200i is a double-station tapped density system, supporting all associated attachments for Methods 1, 2 and 3.

Catalogue Number:

1632

Pharmacopoeial Compliance:

Ph. Eur. 2.9.34

USP <616>

Eur. Ph and USP Test Methods Supported:

1*, 2, 3

*Only one station should be used at a time for this test method

Number of Test Stations:

2

Unit Dimensions (w x d x h):

260 x 347 x 562 mm

(with 250 mL cylinders)

Key JVi Series Highlights

Ph. Eur., USP and ASTM compliant

Intuitive touchscreen control to simplify operation

3 in 1: Single unit supports Methods 1, 2 and 3

Integrated calculation of bulk density, tapped density, Hausner ratio and compressibility index

Adjustable stroke frequency control for accelerated or high sensitivity testing

Extensive data reporting output options: RS 232, USB A and USB B

One to two test station unit configurations available

Option to automate and remotely control JVi systems

JVi Tapped Density Tester

Play Video

JVi Compliance & Maintenance

  • Certificate of compliance to Ph. Eur./USP provided as standard
  • Comprehensive IQ/OQ/PQ documentation packages and toolkits available

JVi Series Accessories

The JVi Tapped Density tester series may also be used for testing a range of other industrial standards, including:

  • ASTM B527 (metallic powders)
  • ASTM D4164 (formed catalysts)
  • ASTM D4781 (fine catalysts)
  • ISO 787-11 (pigments)
  • ISO 3953 (metallic powders)
  • ISO 8460 (instant coffee)
  • ISO 8967 (dried milk)
  • ISO 9161 (uranium oxide powder)
