Powder Testing
Copley offers a range of tools for all Pharmacopoeial assessments of powder flow and density, including equipment to assess flow through an orifice, angle of repose, shear cell as well as compressibility index and Hausner ratio.
Contact Us
Contact Us
Please select a JVi Series tester for further product information
Various cylinder sizes available
Easily removable platforms for changing between methods
Intuitive touchscreen control with icon-based menu structure simplifies operation and clearly displays test parameters throughout run
Small footprint saves precious benchtop space
Robust metal case with advanced corrosion protective coating

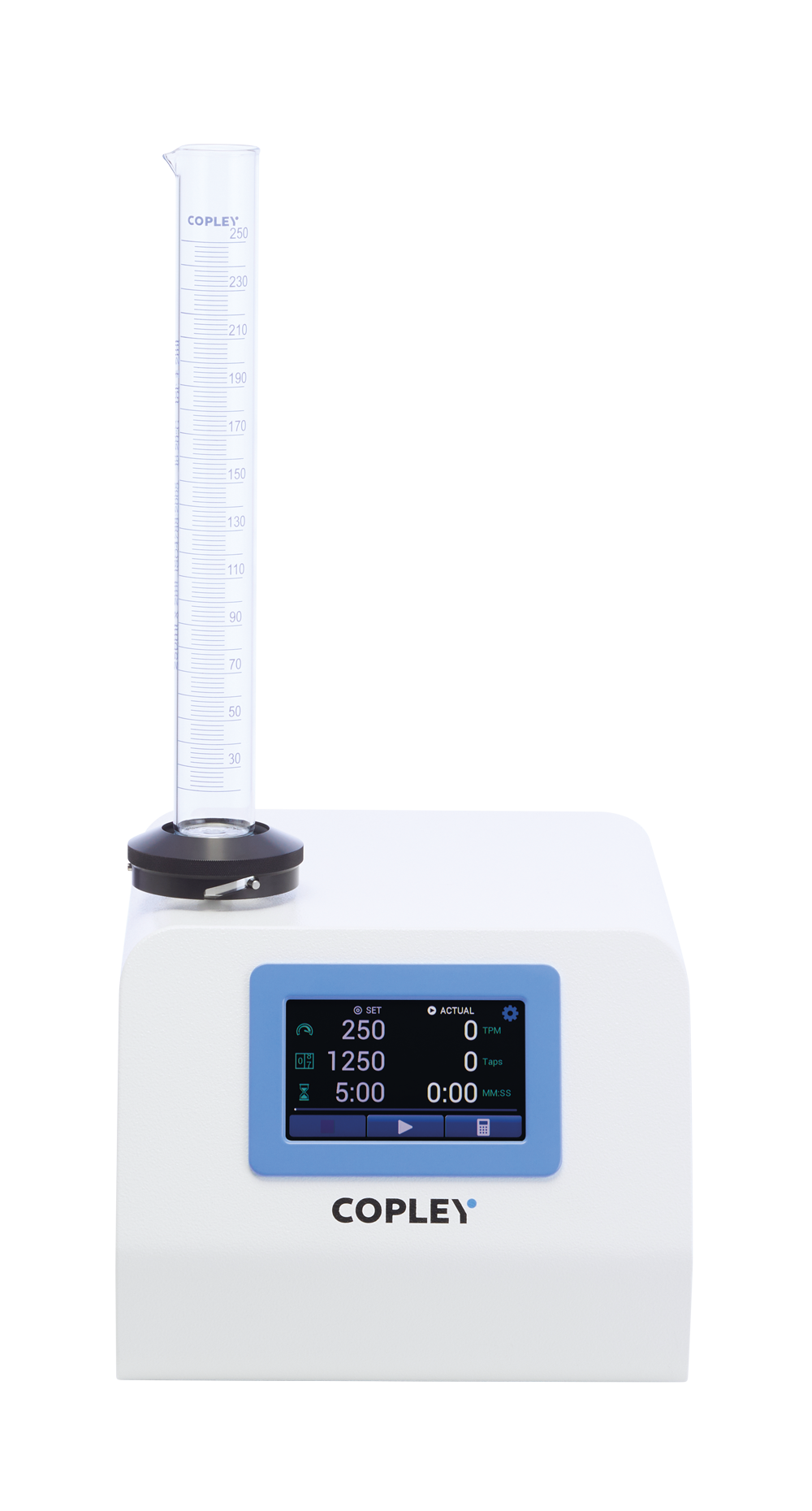

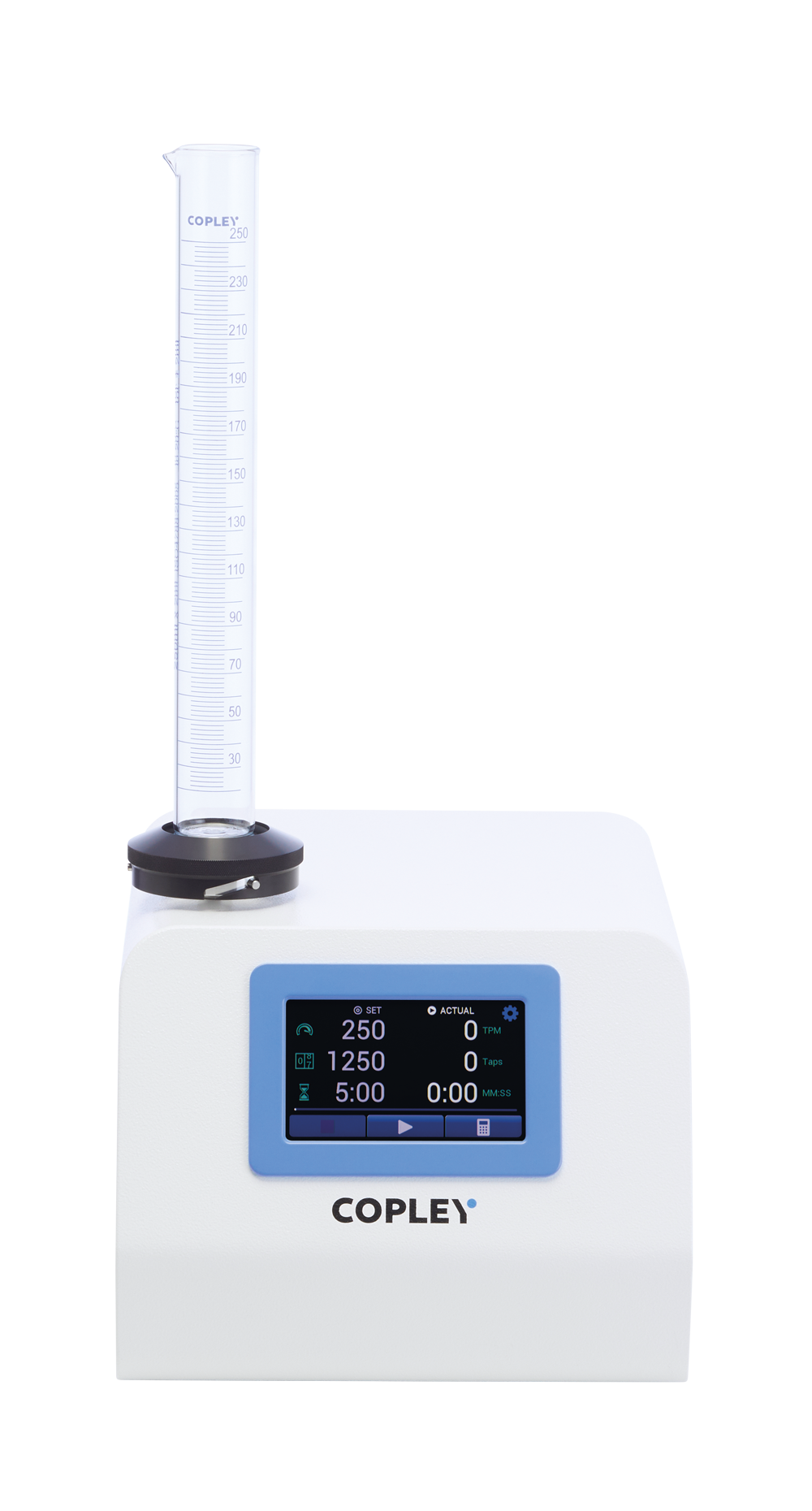

JV 120i
A highly reliable solution for routine measurement of the tapped density of powders, granules and other bulk solids, the Copley JVi Series of powder density testers offers all three methods specified in Eur. Ph. and USP.
The JVi Series provides detailed reports including Hausner ratio calculations and features an automated weighing function for precise and efficient measurements.
Now incorporating the capabilities of the Powder Testing Assistant™ PTA 100i, the JVi Series can be combined with the Powder Testing Workstation™ PTW to drive and automate six standard powder flow and density test techniques: Angle of Repose, Flow Through an Orifice via Cylinder or Funnel, Bulk Density via Scott Volumeter, Shear Cell and Metal Powder Flow. This unique combination enables users to undertake a comprehensive analysis of powders while ensuring consistency and maintaining data integrity. Learn more
The JV 120i is a single-station tapped density system, supporting all associated attachments for Methods 1, 2 and 3.
Catalogue Number: |
1661 |
Pharmacopoeial Compliance: |
Ph. Eur. 2.9.34 USP <616> |
Eur. Ph and USP Test Methods Supported: |
1, 2, 3 |
Number of Test Stations: |
1 |
Unit Dimensions (w x d x h): |
260 x 347 x 562 mm (with 250 mL cylinder) |
Please select a JVi Series tester for further product information
Various cylinder sizes available
Easily removable platforms for changing between methods
Intuitive touchscreen control with icon-based menu structure simplifies operation and clearly displays test parameters throughout run
Robust metal case with advanced corrosion protective coating
Small footprint saves precious benchtop space

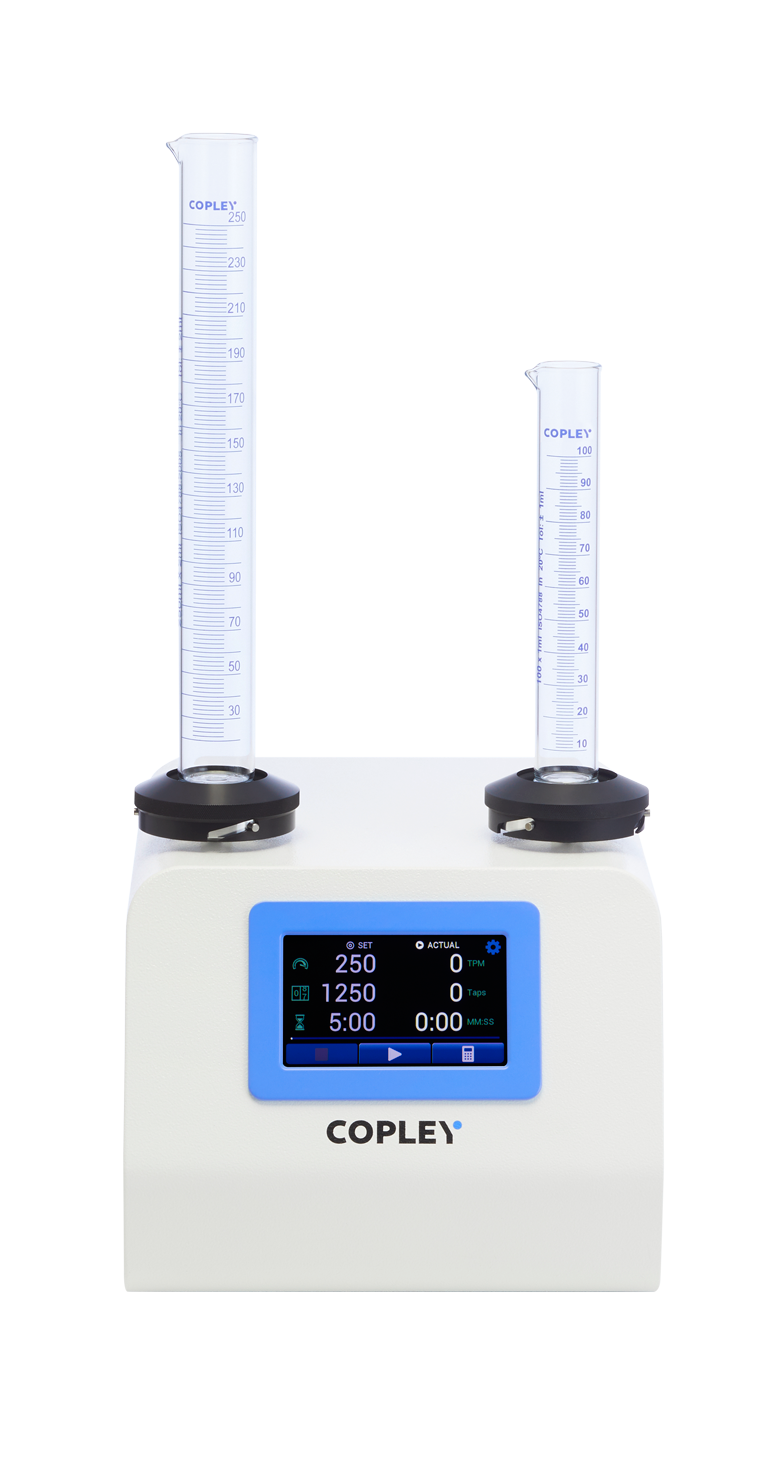

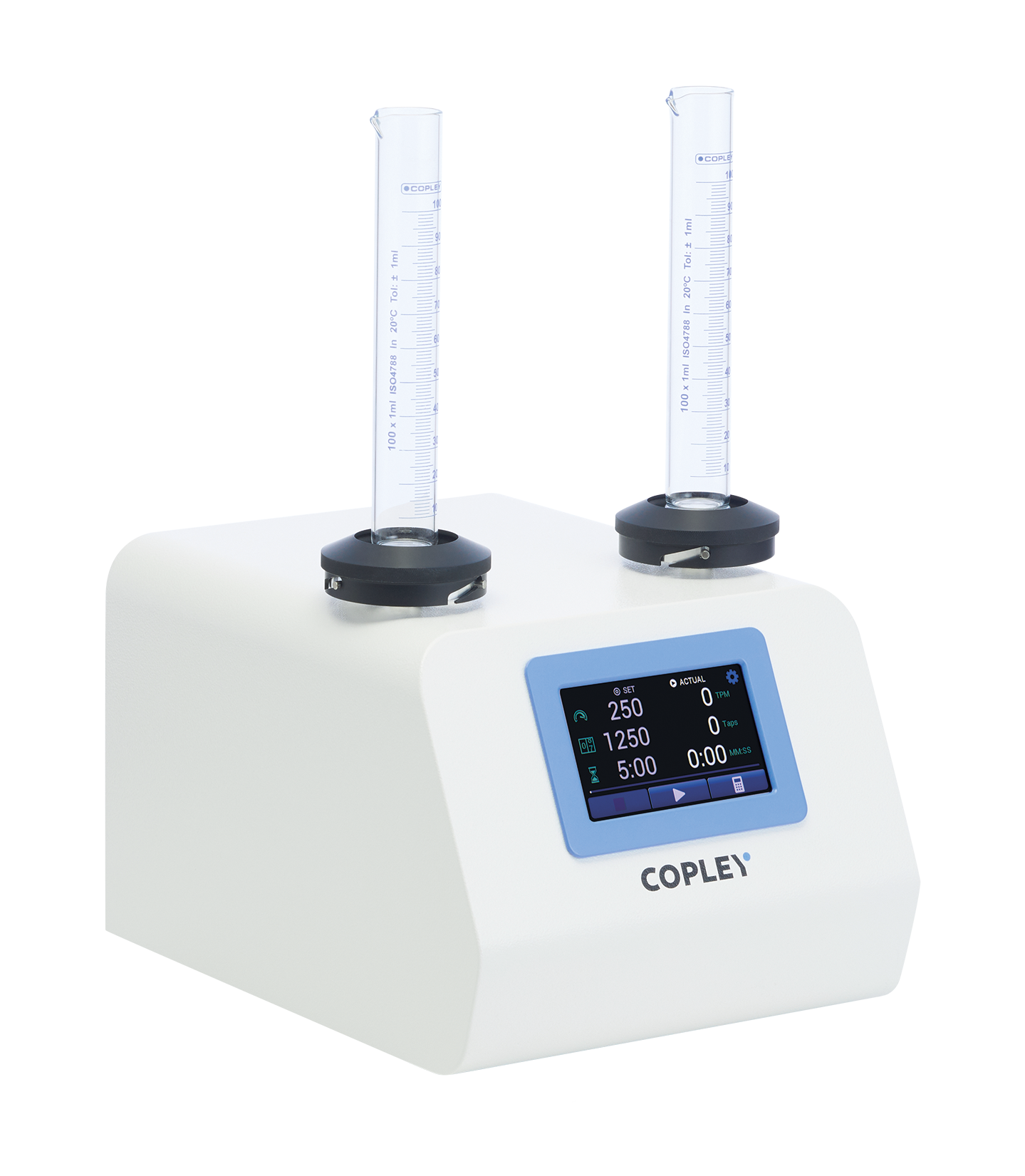

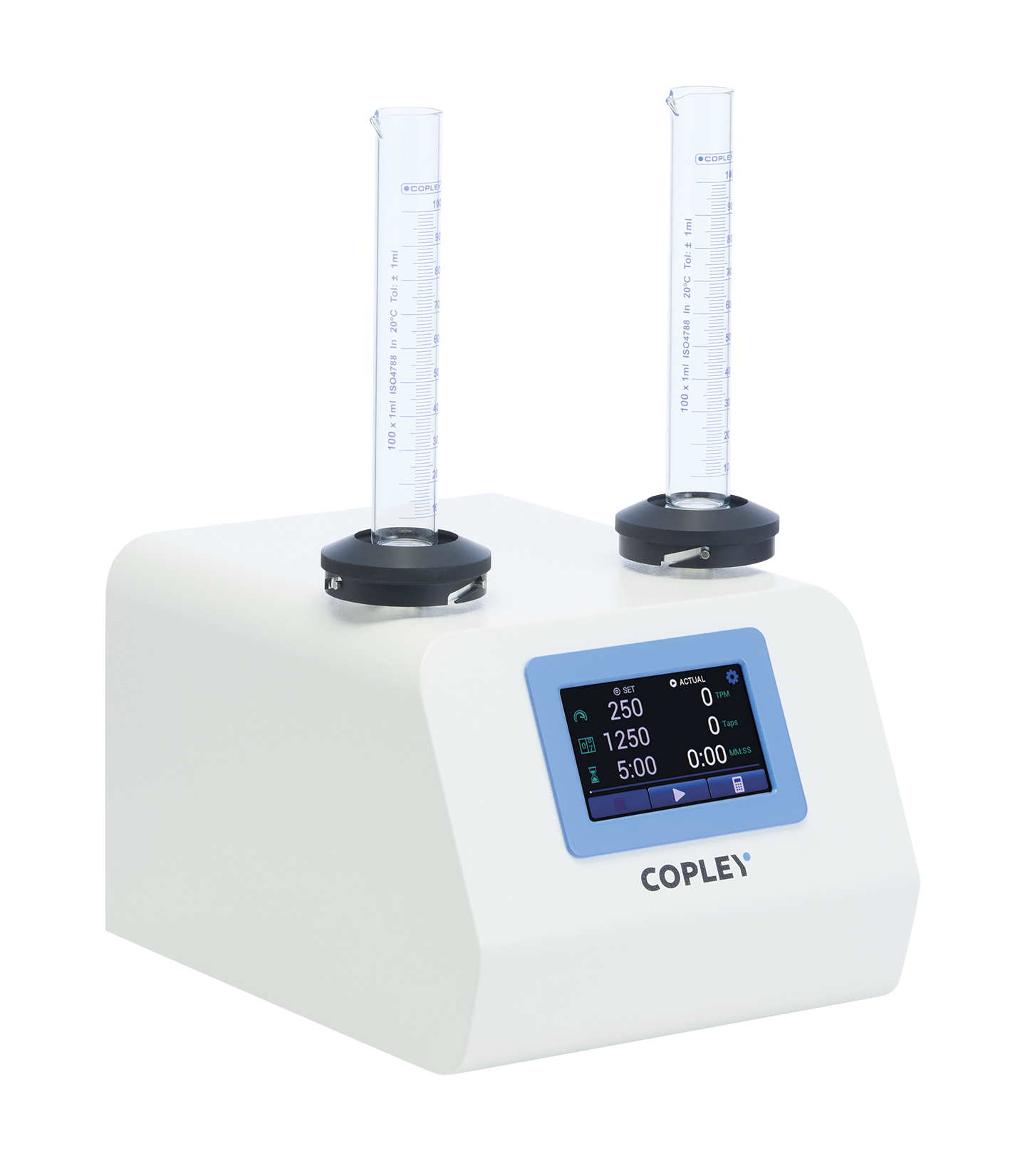

JV 220i
A highly reliable solution for routine measurement of the tapped density of powders, granules and other bulk solids, the Copley JVi Series of powder density testers offers all three methods specified in Eur. Ph. and USP.
The JVi Series provides detailed reports including Hausner ratio calculations, and features an automated weighing function for precise and efficient measurements.
Now incorporating the capabilities of the Powder Testing Assistant™ PTA 100i, the JVi Series can be combined with the Powder Testing Workstation™ PTW to drive and automate six standard powder flow and density test techniques; Angle of Repose, Flow Through an Orifice via Cylinder or Funnel, Bulk Density via Scott Volumeter, Shear Cell and Metal Powder Flow. This unique combination enables users to undertake a comprehensive analysis of powders while ensuring consistency and maintaining data integrity. Learn more
The JV 220i is a double-station tapped density system, supporting all associated attachments for Methods 1, 2 and 3.
Catalogue Number: |
1662 |
Pharmacopoeial Compliance: |
Ph. Eur. 2.9.34 USP <616> |
Eur. Ph and USP Test Methods Supported: |
1*, 2, 3 *Only one station should be used at a time for this test method |
Number of Test Stations: |
2 |
Unit Dimensions (w x d x h): |
260 x 347 x 562 mm (with 250 mL cylinders) |
Key JVi Series Highlights
Ph. Eur., USP and ASTM compliant
Intuitive touchscreen control to simplify operation
3 in 1: Single unit supports Methods 1, 2 and 3
Integrated calculation of bulk density, tapped density, Hausner ratio and compressibility index
Adjustable stroke frequency control for accelerated or high sensitivity testing
Extensive data reporting output options: RS 232, USB A and USB B
One to two test station unit configurations available
Option to automate and remotely control JVi systems
Automated weighing function
Integrated Powder Testing Assistant software for compatibility with Powder Testing Workstation
JVi User Screens
Setting a test parameter
Set v Actual test parameters (during test run) with test progress bar
Calculation screen (after data entry)
Access to the PTA features on a JVi
JVi Tapped Density Tester Series

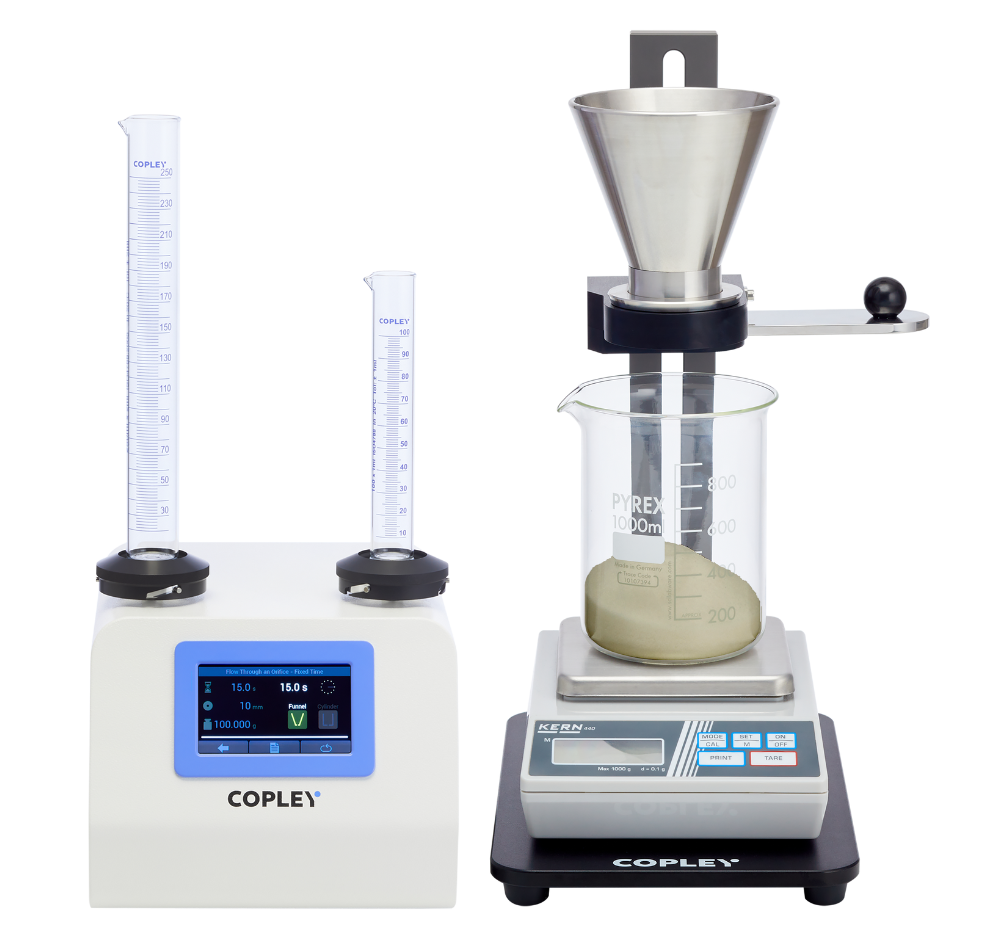

New! Integrated PTA functionality for compatibility with the PTW
JV 120i and JV 220i Tapped Density Testers now include the functionality of the Powder Testing Assistant™ PTA 100i as standard, enabling compatibility with the Powder Testing Workstation™ PTW to deliver a complete powder testing toolkit in one streamlined configuration.
View brochure for more about the PTW and PTA 100i™
JVi Compliance & Maintenance
- Certificate of compliance to Ph. Eur./USP provided as standard
- Comprehensive IQ/OQ/PQ documentation packages and toolkits available
The JVi Tapped Density tester series may also be used for testing a range of other industrial standards, including:
- ASTM B527 (metallic powders)
- ASTM D4164 (formed catalysts)
- ASTM D4781 (fine catalysts)
- ISO 787-11 (pigments)
- ISO 3953 (metallic powders)
- ISO 8460 (instant coffee)
- ISO 8967 (dried milk)
- ISO 9161 (uranium oxide powder)
JVi Series Accessories
Platforms
A variety of platforms are available to support Methods 1, 2 and 3. Each are easily are removable
for quick method change.
Platforms
A variety of platforms are available to support Methods 1, 2 and 3. Each are easily are removable
for quick method change.
Vessels (for Method 3)
For the assessment of bulk density in a vessel
View Brochure
Measuring Cylinders
250 mL and 100 mL measuring cylinders are available to order as spares, or a range of smaller volume measuring cylinders are also available for smaller volume requirements (50, 25, 10 and 5 mL).
View Brochure
Measuring Cylinders
250 mL and 100 mL measuring cylinders are available to order as spares, or a range of smaller volume measuring cylinders are also available for smaller volume requirements (50, 25, 10 and 5 mL).
Acoustic Cabinet
Reduce the noise level of the JVi tester with our acoustic cabinet
View Brochure
Label Printer
Streamlines laboratory data printing
View Brochure
