Tablet Hardness Testing (Breaking Force)
From simple hand-held units for use on the production floor, to semi-automated units for advanced analysis, Copley offers hardness testers to suit every analyst’s needs.
Contact Us
Contact Us
Please select a TH3 Series tester for further information

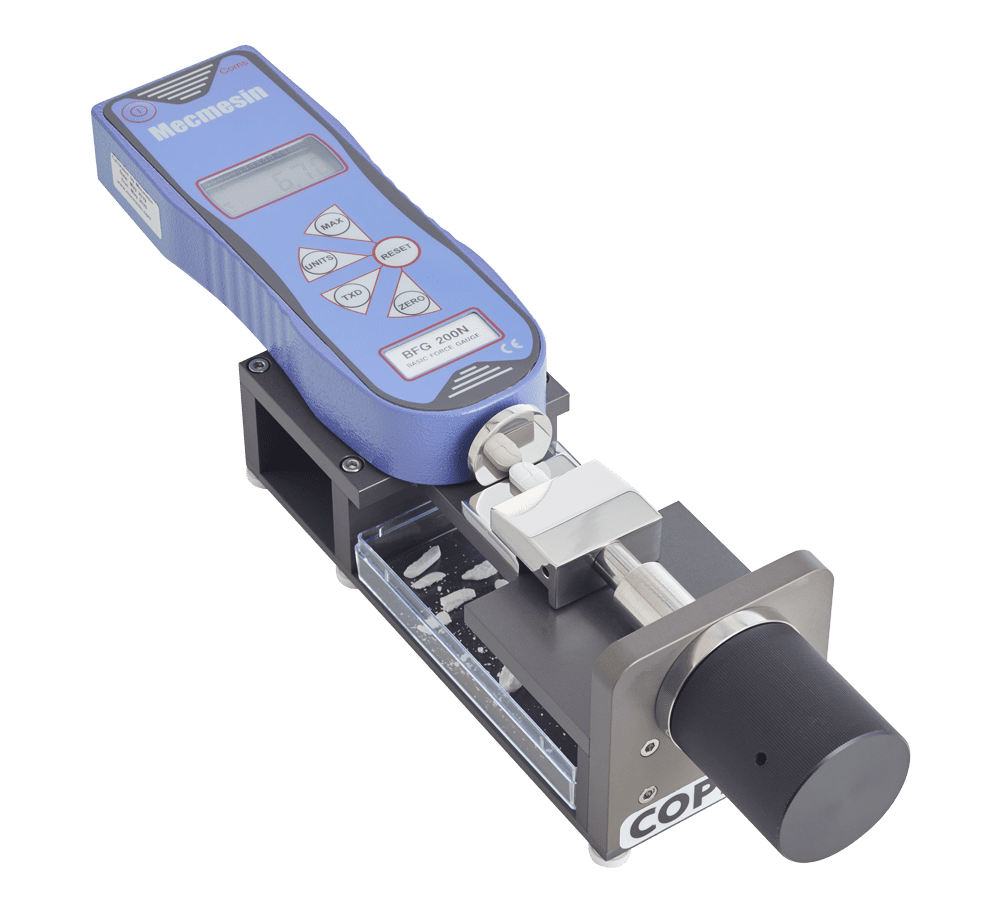

TH3/200
Ideal for use in the production area for a quick check of compression force, the TH3 is a portable and simple-to-use tablet hardness tester.
Using a multi-turn, low-friction hand wheel to apply the load, the TH3/200 can apply a force up to 200 N. The resulting breaking force is displayed clearly on the LCD with a wide choice of data output options.
With no calibration routinely required, this tester offers easy and convenient tablet hardness testing in busy production environments.
Catalogue Number: |
7801 |
Pharmacopoeial Compliance: |
Ph. Eur. 2.9.8 USP <1217> |
Max. Tablet Diameter: |
30 mm |
Force Range: |
0-200 N (+/- 0.04 N) |
Statistics Reporting: |
No |
Batch Testing: |
No |
Portable: |
Yes |
Unit Dimensions (w x d x h): |
82 x 380 x 90 mm |
Please select a TH3 Series tester for further information
TH3/500
Ideal for use in the production area for a quick check of compression force, the TH3 is a portable and simple-to-use tablet hardness tester.
Using a multi-turn, low-friction hand wheel to apply the load, the TH3/500 can apply a force up to 500 N. The resulting breaking force is displayed clearly on the LCD with a wide choice of data output options.
With no calibration routinely required, this tester offers easy and convenient tablet hardness testing in busy production environments.
Cat No: |
7802 |
Pharmacopoeial Compliance: |
Ph. Eur. 2.9.8 USP <1217> |
Max. Tablet Diameter: |
30 mm |
Force Range: |
0-500 N (+/- 0.1 N) |
Statistics Reporting: |
No |
Batch Testing: |
No |
Portable: |
Yes |
Key TH3 Series Highlights
Tablet hardness testing with easy calibration verification
Choice of force measurement unit (N, g, lbs, oz)
Portable unit with debris collection tray
Clear LCD display
Measures tablets < 30mm diameter
Extensive data reporting output options: RS-232, Mitutoyo and analogue data output
