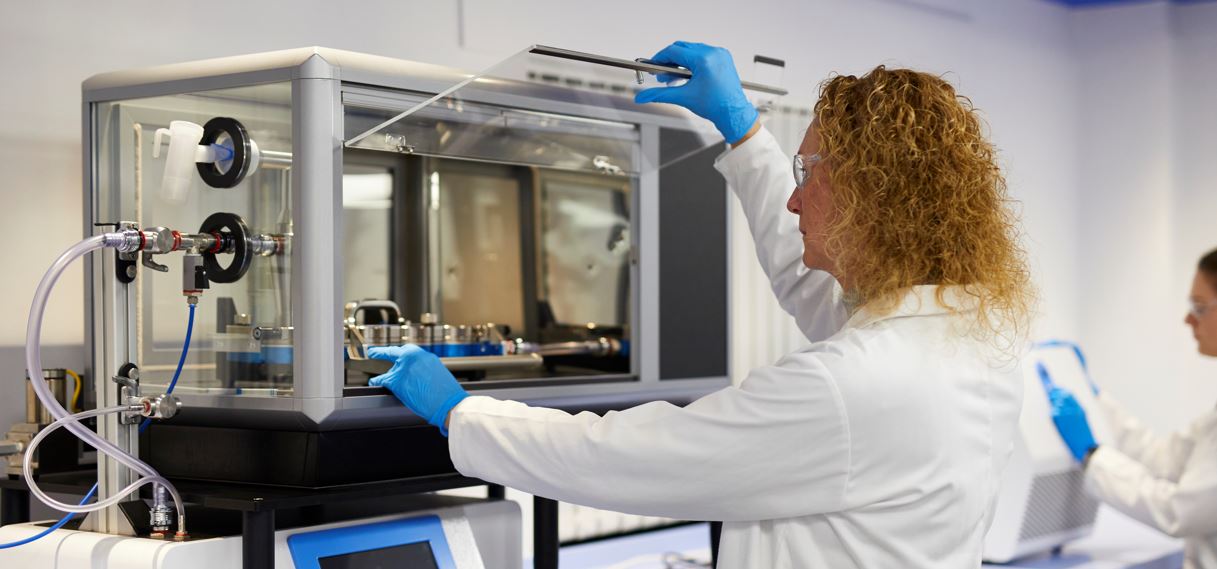

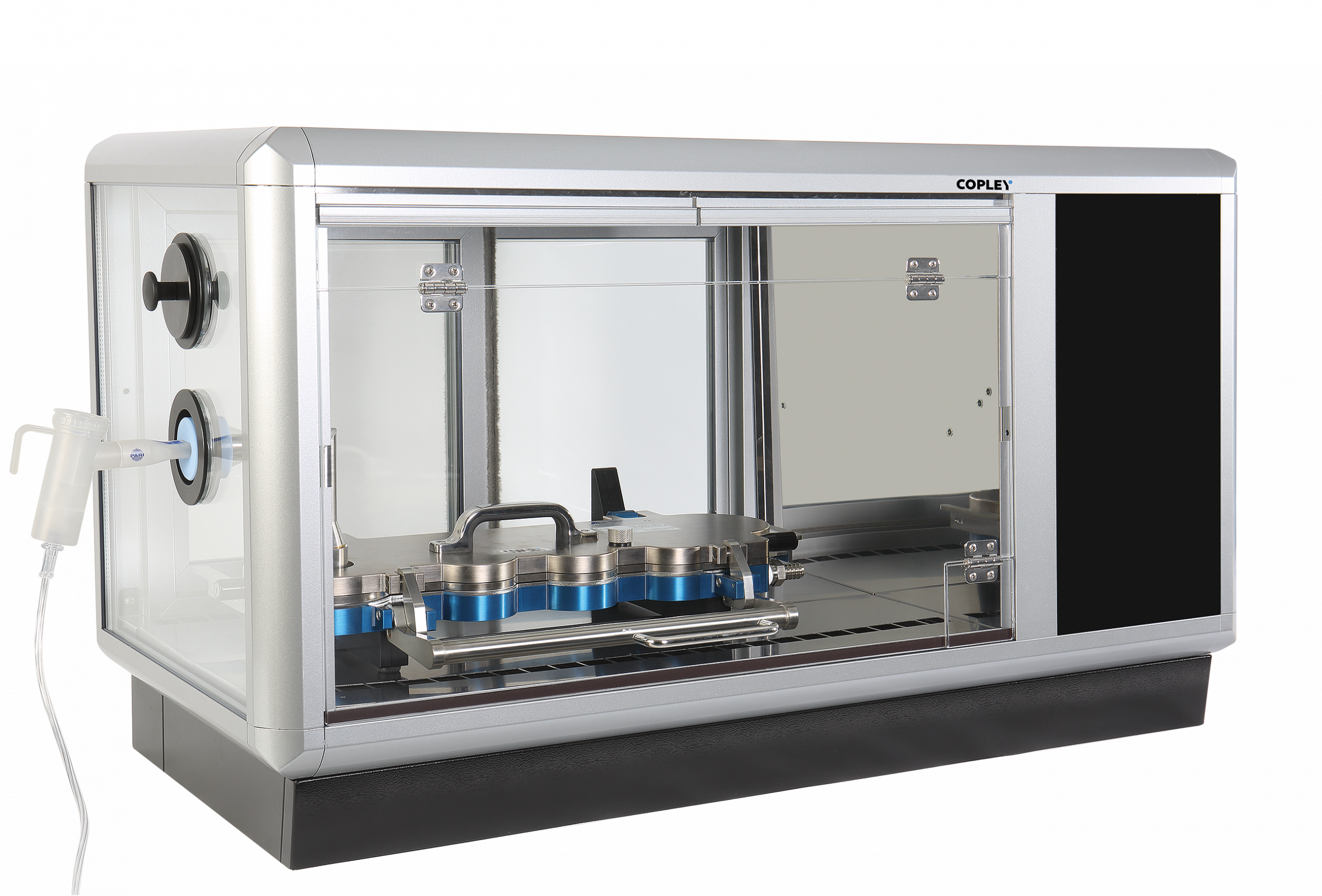

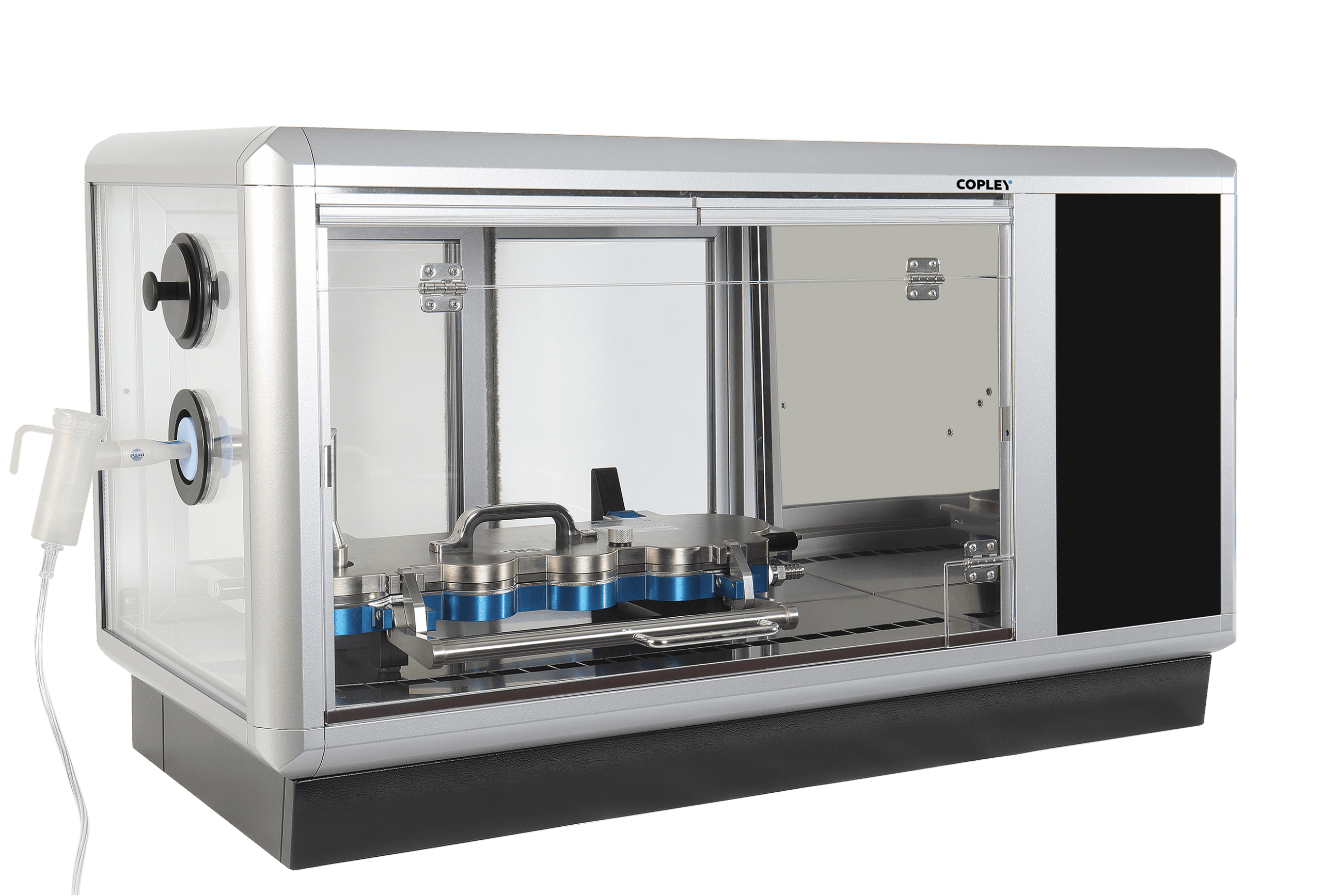

NGI Cooler™

Exacerbated evaporation caused by the thermal mass of the NGI may be an issue for devices such as nebulisers that deliver the drug as an aerolised solution. Loss of solvent reduces droplet size, producing artificially low particle size measurements, compromising APSD data integrity. The NGI Cooler is designed to cool the impactor to overcome the issue of droplet size change due to evaporation.

The NGI Cooler™ is designed to support testing in a temperature-controlled environment, cooling the impactor to 5°C to overcome the issue of droplet size change due to evaporation.

Ph. Eur. and USP compliant, EPAG-recommended
Precise temperature control
Comfortably accommodates NGI in open or closed position
Easy access via large front and rear doors
Twin side access ports for the nebuliser (and mixing inlet if used)
Additional space for cooling of other components, such as collection cups meaning multiple test can occur in quick succession

View Brochure

NGI Cooler™ Technical Specifications
Temperature range	0◦C and ambient (typically 5◦C to 10◦C)
Temperature accuracy	+/- 1.5 ◦C
Dimensions (w x d x h)	1000 x 500 x 575 mm

NGI Cooler™ Shelf

The NGI Cooler Shelf allows APSD testing to be conducted with one NGI at the optimum 5°C, in accordance with pharmacopoeial recommendations, while a second cup tray and accessories, or even an entire NGI, are maintained at the same temperature ready for subsequent testing.

The shelf is purposely designed to allow APSD testing to be performed in an NGI Cooler without obstruction while ensuring sufficient airflow for optimised cooling.

Contact us for more information

NGI Cooler™ Stand for BRS 200i

Designed to save precious benchtop space, the NGI Cooler Stand raises the NGI Cooler to create a space large enough underneath to accommodate the BRS 200i.

Contact us for more information
