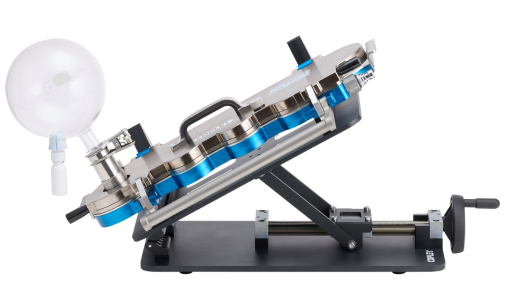

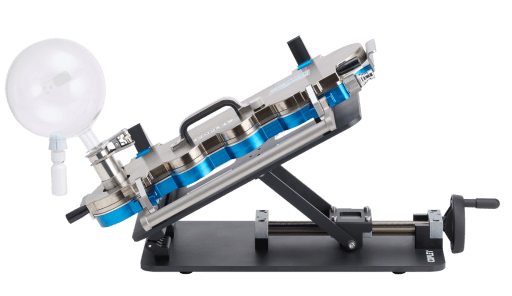

NGI Tilting Platform

The NGI Tilting Platform provides an adjustable method for securely inclining an NGI during APSD testing.
The platform enables users to assess the impact of actuation angle on product performance without compromising test setup. It is also ideal for ensuring vertical orientation of nasal devices when using Glass Expansion Chambers or for OINDP characterisation studies.

  • Precise Angle Control: Safely and easily incline up or down between 5° and 45°.

  • Enhanced Product Development: Enables testing at different actuation angles to assess product performance comprehensively.

  • Repeatability: Provides a secure and robust setup for consistency and reproducibility.

  • Flexibility: Compatible with all NGI setups, including the Glass Expansion Chamber, Alberta Idealised Nasal Inlet and Alberta Idealised Throat.

Tilting Platform used to control the angle of a Nasal Spray APSD test with the Alberta Idealised Nasal Inlet

Tilting Platform with the platform raised to show the rotary angle adjustment mechanism

Tilting Platform used to control the angle of a Metered Dose Inhaler APSD test

Tilting Platform used to control the angle of a Dry Powder Inhaler APSD test

NGI Tilting Platform: Technical Specifications

Material of Construction:

Aluminium 5083 (Black Anodised)

Angle Range:

5-45 degrees

Dimensions (mm):

375mm x 425mm x 1127mm

Weight:

7kg
