Device Robustness / Inhaler Misuse

Device mishandling and poor technique are widely recognised issues associated with the use of inhalers, resulting in inadequately controlled respiratory disease and an over-reliance on emergency remedies. Copley offers solutions to aid those developing inhaled drug devices and products in understanding the impact of poor patient technique on the critical quality attributes (CQAs) of inhalers to help optimise inhaler designs for more robust drug delivery.

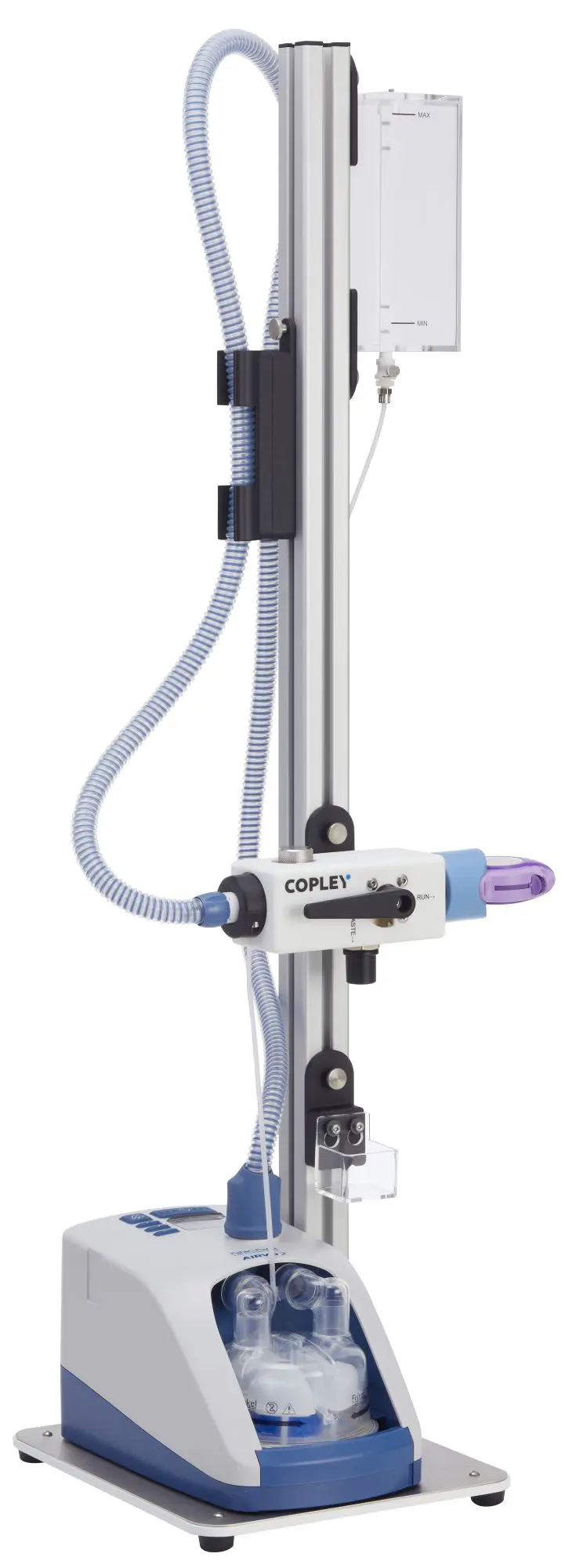

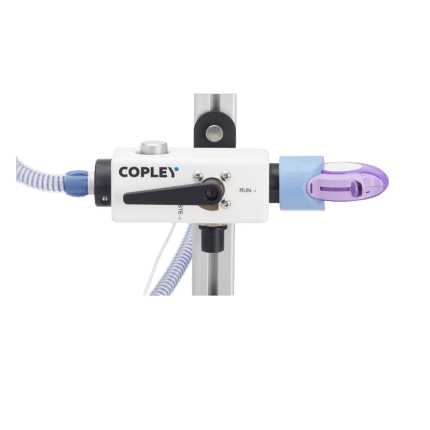

Patient Exhalation Simulator (PES)

Exhalation into the inhaler mouthpiece prior to the inhalation step is a commonly reported error in patient technique associated with inhaler use. For Dry Powder Inhalers (DPIs), exhaling into the mouthpiece may result in the dose clumping and adhering to the inner mouthpiece surfaces, compromising drug delivery to the patient.

Replicating the effects of a patient exhaling into a device mouthpiece prior to the inhalation step, the Patient Exhalation Simulator (PES) enables developers to assess how device misuse impacts the CQAs of the inhaler, to empower device design optimisation and ensure robust drug delivery.

Simple to use
Easy to set-up, with minimal maintenance required
Ideal for assessing a wide range of patient profiles

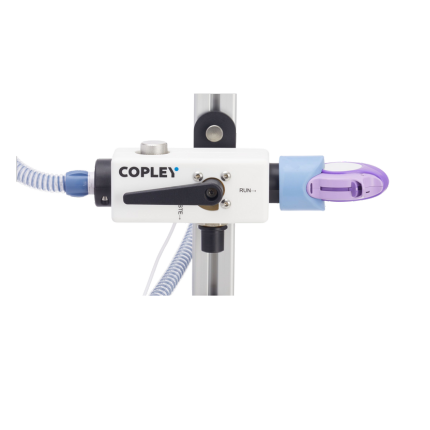

Air flow to inhaler: Exhalation simulations are performed by directing warm, humid air at the inhaler mouthpiece for a set period of time.

Air flow to waste: At the end of the timed exhalation, the air flow is directed to ‘Waste‘ via a manually controlled valve.

View Product Highlight Have a question? Contact our team

Patient Exhalation Simulator PES: Technical Specifications
Temperature set-points:	31°C, 34°C, 37°C
Humidity set-points:	Always saturated
Flow rate set-points:	10 – 60 L/min
Dimensions (w x d x h):	225 x 300 x 1030 mm
