Tablet Disintegration Testing
The result of decades of innovation and experience in the field of pharmaceutical testing, the DTGi Series of disintegration testers from Copley simplifies testing within R&D and QC environments. Suitable for a wide range of tablet and capsule types (e.g. plain-coated tablets, delayed-release, gelatine etc.), the DTGi tester series is an affordable range of disintegration testers that complies fully with specifications defined in Ph. Eur., USP and associated Pharmacopoeias.
Contact Us
Contact Us
Please select a DTGi Series tester for further product information
Quick-release baskets for rapid sample loading, unloading and cleaning
Intuitive touchscreen control with icon-based menu structure simplifies operation and clearly displays test parameters throughout run
Robust metal case with advanced corrosion protective coating
Basket rack assemblies are automatically lowered and raised to/from test media at start and end of test
Independent digital heater/circulator maintains a constant temperature and minimises vibration
Easily removable leak-proof water bath with convenient drain tap eases bath water emptying
Maximum fill line indicator
PT100 temperature probe monitors bath and media temperature

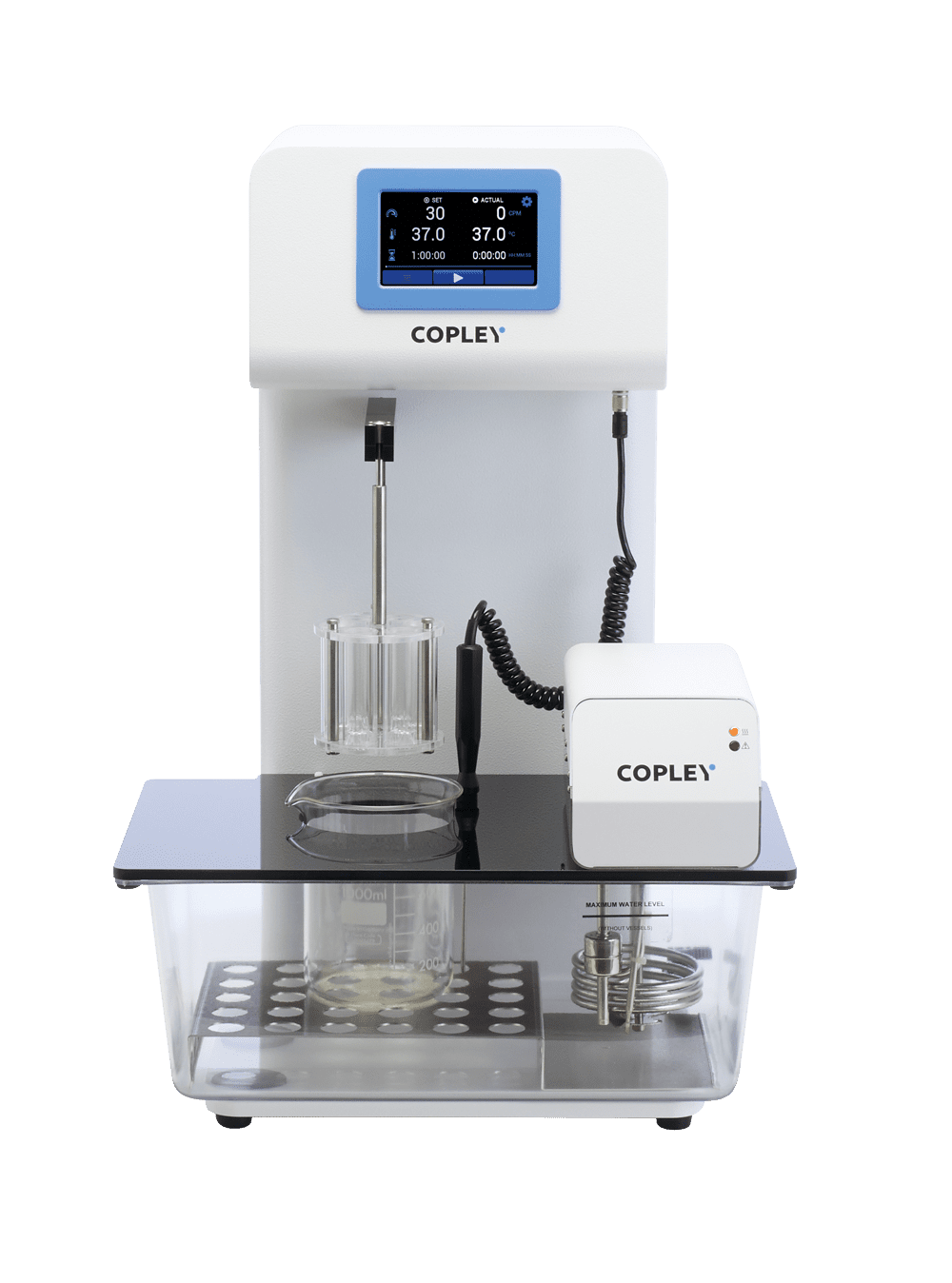

DTG 100i
Controlled via our intuitive touchscreen interface, the DTGi 100i is a single station disintegration tester. The user-friendly design makes assessing disintegration characteristics a simple touch-of-a-button task.
Catalogue Number: |
1231 |
Pharmacopoeial Compliance: |
Ph. Eur. 2.9.1 USP <701> and <2040> |
Number of Test Stations: |
1 |
Tablet Capacity: |
Up to 6 |
Independent Station Control: |
No |
Unit Dimensions (w x d x h): |
450 x 473 x 657 mm |
Please select a DTGi Series tester for further product information
Quick-release baskets for rapid sample loading, unloading and cleaning
Intuitive touchscreen control with icon-based menu structure simplifies operation and clearly displays test parameters throughout run
Robust metal case with advanced corrosion protective coating
Basket rack assemblies are automatically lowered and raised to/from test media at start and end of test
Independent digital heater/circulator maintains a constant temperature and minimises vibration
Easily removable leak-proof water bath with convenient drain tap eases bath water emptying
Maximum fill line indicator
PT100 temperature probe monitors bath and media temperature

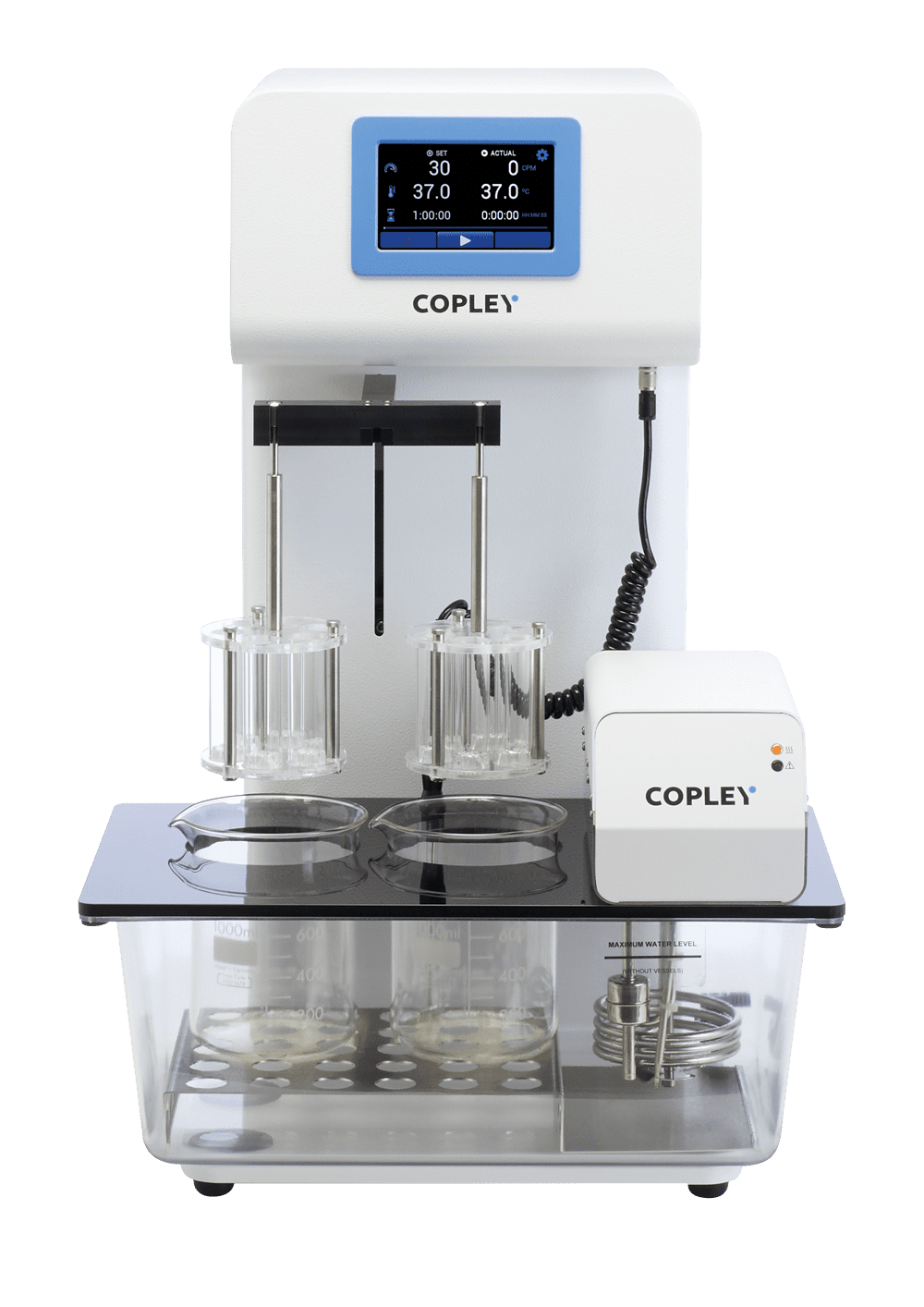

DTG 200i
Controlled via our intuitive touchscreen interface, the DTGi 200i disintegration tester supports up to two basket rack assemblies. The user-friendly design makes assessing disintegration characteristics a simple touch-of-a-button task.
Catalogue Number: |
1232 |
Pharmacopoeial Compliance: |
Ph. Eur. 2.9.1 USP <701> and <2040> |
Number of Test Stations: |
2 |
Tablet Capacity: |
Up to 12 |
Independent Station Control: |
No |
Unit Dimensions (w x d x h): |
450 x 473 x 657 mm |
Please select a DTGi Series tester for further product information
Quick-release baskets for rapid sample loading, unloading and cleaning
Intuitive touchscreen control with icon-based menu structure simplifies operation and clearly displays test parameters throughout run
Robust metal case with advanced corrosion protective coating
Basket rack assemblies are automatically lowered and raised to/from test media at start and end of test
Independent digital heater/circulator maintains a constant temperature and minimises vibration
Easily removable leak-proof water bath with convenient drain tap eases bath water emptying
Maximum fill line indicator
PT100 temperature probe monitors bath and media temperature

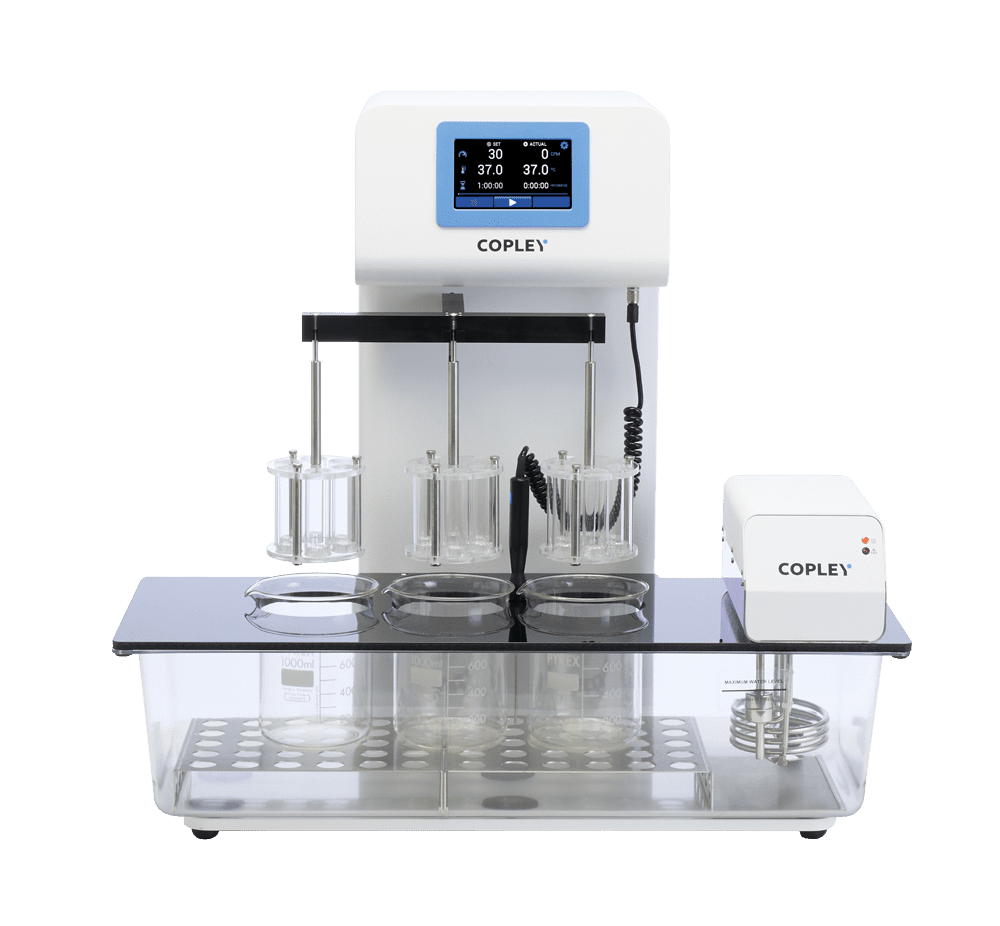

DTG 300i
Controlled via our intuitive touchscreen interface, the DTGi 300i disintegration tester supports up to three basket rack assemblies. The user-friendly design makes assessing disintegration characteristics a simple touch-of-a-button task.
Catalogue Number: |
1233 |
Pharmacopoeial Compliance: |
Ph. Eur. 2.9.1 USP <701> and <2040> |
Number of Test Stations: |
3 |
Tablet Capacity: |
18 |
Independent Station Control: |
No |
Unit Dimensions (w x d x h): |
700 x 473 x 657 mm |
Please select a DTGi Series tester for further product information
Quick-release baskets for rapid sample loading, unloading and cleaning
Intuitive touchscreen control with icon-based menu structure simplifies operation and clearly displays test parameters throughout run
Robust metal case with advanced corrosion protective coating
Basket rack assemblies are automatically lowered and raised to/from test media at start and end of test
Independent digital heater/circulator maintains a constant temperature and minimises vibration
Easily removable leak-proof water bath with convenient drain tap eases bath water emptying
Maximum fill line indicator
PT100 temperature probe monitors bath and media temperature

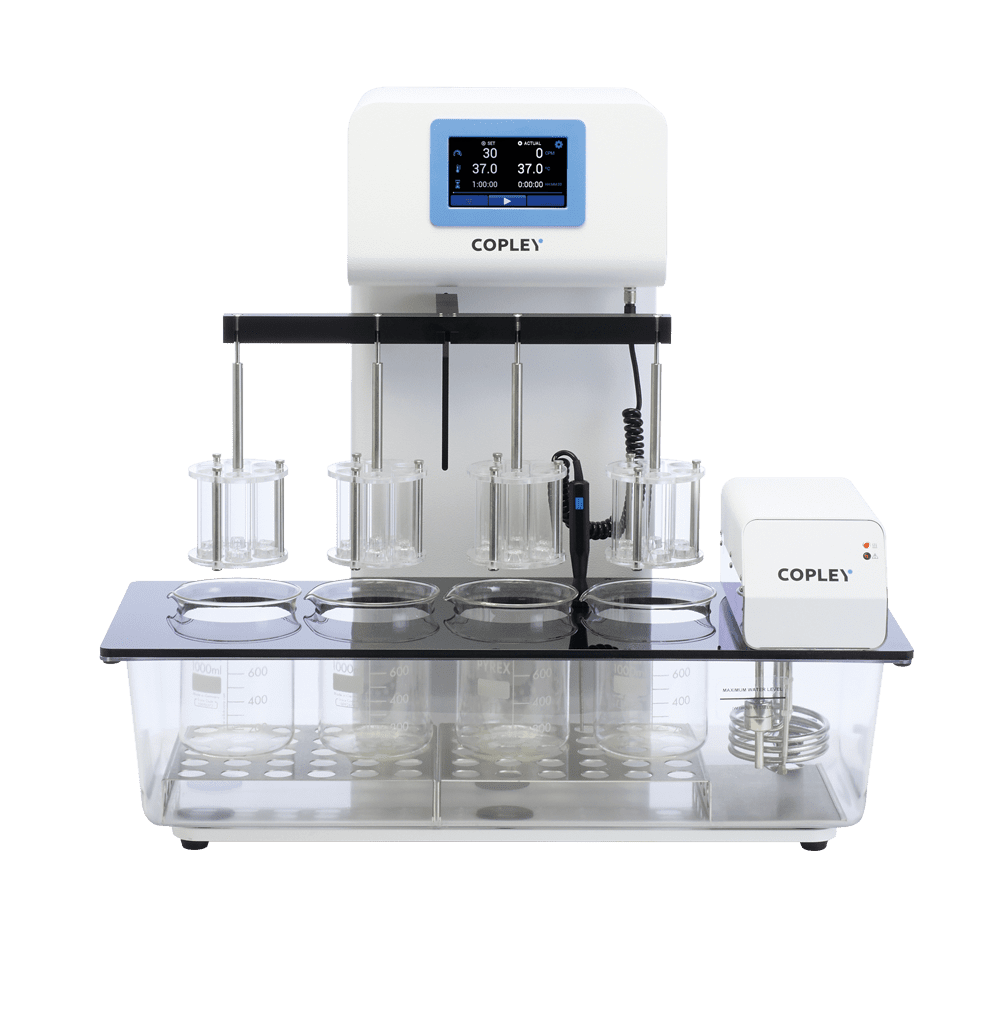

DTG 400i
Controlled via our intuitive touchscreen interface, the DTGi 400i disintegration tester supports up to four basket rack assemblies. The user-friendly design makes assessing disintegration characteristics a simple touch-of-a-button task.
Catalogue Number: |
1234 |
Pharmacopoeial Compliance: |
Ph. Eur. 2.9.1 USP <701> and <2040> |
Number of Test Stations: |
4 |
Tablet Capacity: |
24 |
Independent Station Control: |
No |
Unit Dimensions (w x d x h): |
700 x 473 x 657 mm |
Please select a DTGi Series tester for further product information
Quick-release baskets for rapid sample loading, unloading and cleaning
Intuitive touchscreen control with icon-based menu structure simplifies operation and clearly displays test parameters throughout run
Robust metal case with advanced corrosion protective coating
Basket rack assemblies are automatically lowered and raised to/from test media at start and end of test
Independent digital heater/circulator maintains a constant temperature and minimises vibration
Easily removable leak-proof water bath with convenient drain tap eases bath water emptying
Maximum fill line indicator
PT100 temperature probe monitors bath and media temperature
DTG-200i IS
With the same standard features as the other DTGi Series testers and supporting up to 2 basket rack assemblies, the DTG 200i-IS offers independent control over each test station, making it ideal for the following types of applications:
- Comparing one formulation directly against another
- Comparing the performance of a single formulation under different conditions
- Assessing delayed release or enteric coated tablets where samples must be immersed for specified periods of time in different media
- Allowing two users to run tests simultaneously
Catalogue Number: |
1238 |
Pharmacopoeial Compliance: |
Ph. Eur. 2.9.1 USP <701> and <2040> |
Number of Test Stations: |
2 |
2 |
Up to 12 |
Independent Station Control: |
Yes |
Unit Dimensions (w x d x h): |
515 x 473 x 657 mm |
Key DTGi Series Highlights
Ph. Eur. and USP and compliant
Integrated, precision temperature control and measurement
Single-point electronic temperature calibration
Intuitive touchscreen control to simplify operation
One to four test station unit configurations, plus independent station control unit option
Extensive data reporting output options: RS 232, USB A and USB B
Adjustable stroke frequency control for accelerated or high sensitivity testing
Option to automate and remotely control DTGi systems
DTGi Disintegration Tester Series
DTGi Compliance & Maintenance
- Certificate of compliance to Ph. Eur./USP provided as standard
- Comprehensive IQ/OQ/PQ documentation packages and toolkits available
- Passcode-protected single-point electronic temperature calibration
- Latest temperature calibration information stored and available to print/export
DTGi Series Accessories
Basket Rack Assembly: Hard & Soft Gelatine Capsules
For converting the standard basket to special covered version for testing hard or soft gelatine capsules accepting to USP Chapter <701>
View Brochure
Basket Rack Assembly: Hard & Soft Gelatine Capsules
For converting the standard basket to special covered version for testing hard or soft gelatine capsules accepting to USP Chapter <701>
Basket Rack Assembly: Large Tablets & Capsules
Special basket-rack assembly for large tablets, capsules and boluses. In this version, the six standard tubes are replaced with three tubes of a larger diameter (33 mm). Supplied with special cylindrical discs as specified in the Pharmacopoeia.
View Brochure
Basket Rack Assembly: Large Tablets & Capsules
Special basket-rack assembly for large tablets, capsules and boluses. In this version, the six standard tubes are replaced with three tubes of a larger diameter (33 mm). Supplied with special cylindrical discs as specified in the Pharmacopoeia.
Hygiene: Anti-Bacterial/Anti-Algae Treatment
Keep your water bath free of bacterial, algal or slime growth with Aquabator™.
Hygiene: Anti-Bacterial/Anti-Algae Treatment
Keep your water bath free of bacterial, algal or slime growth with Aquabator™.
Label Printer
Streamlines laboratory data printing.
View Brochure
