Abbreviated Impactor Measurement (AIM)

The concept of Abbreviated Impactor Measurment (AIM) is founded on the basis that once the full Aerodynamic Particle Size Distribution (APSD) profile of the product has been established in development using a full-resolution cascade impactor (and the process validated) then for product batch release testing and QC applications, it is possible to use simpler but highly sensitive metrics, solely to determine if the product is fit for purpose. This is known as Efficient Data Analysis (EDA).

The Volume and Resistance Compensator (VRC) enables analysts to match the flow resistance and flow rate rise-time profiles between a full resolution impactor and its abbreviated counterpart to ensure comparable conditions for aerosol generation, supporting improved equivalence in aerodynamic particle sizing measurements.

  • Suitable for use with all types of abbreviated impactors

  • Easily adjustable for different set ups

  • Ensures parity between test methods, improving data comparability

  • Designed using Copley expertise

VRC: Improving Full Resolution and Abbreviated Impactor Data Parity

Differences in total volume and flow resistance between a full resolution cascade impactor and its abbreviated counterpart is known to cause variability in the flow rate rise-time profiles between the two test set-ups. This difference reduces parity between test conditions, especially for passive, dry powder inhalers (DPIs) where start-up kinetics can be important.

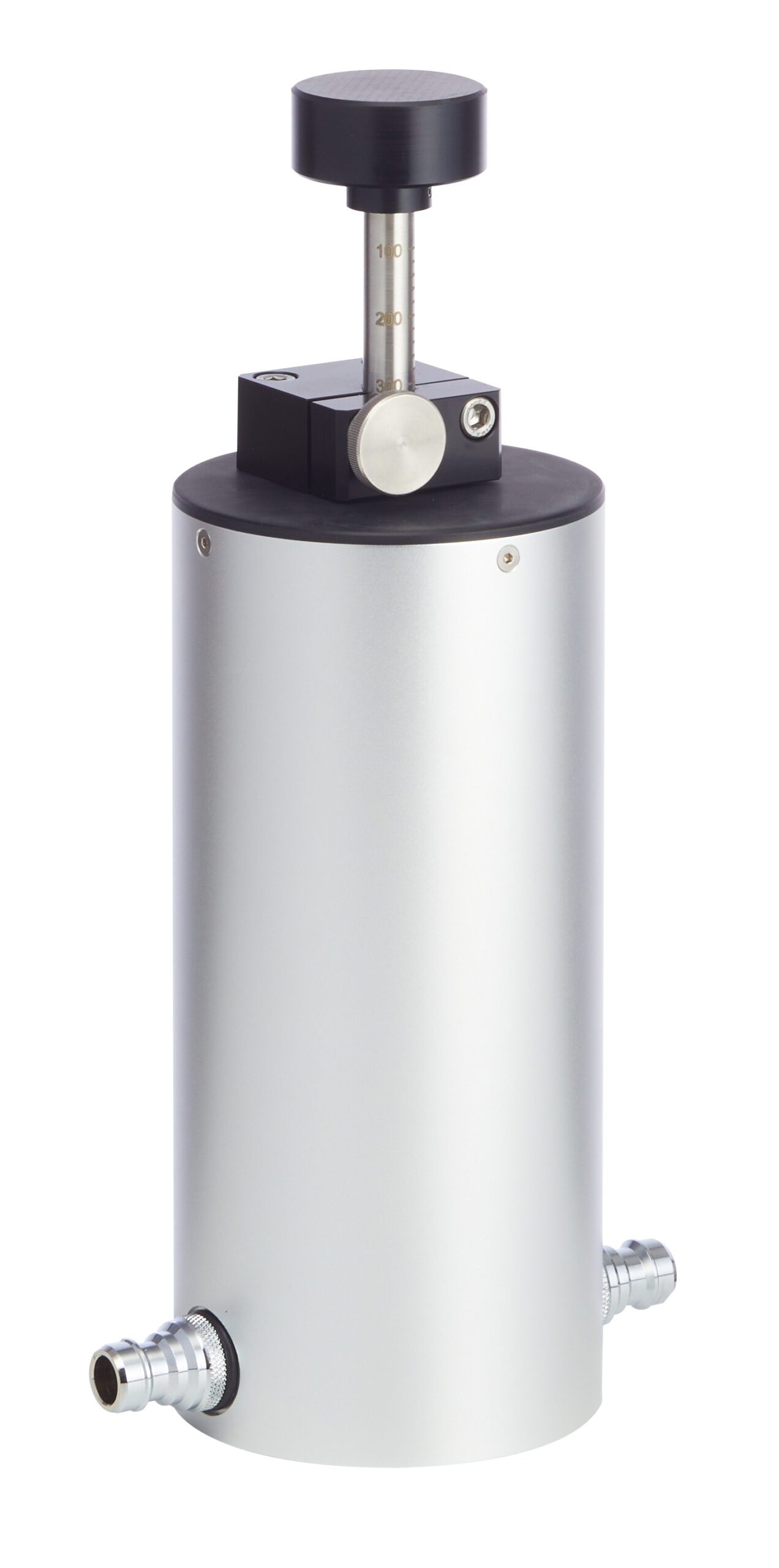

Connecting inline between a critical flow controller (TPKi Series only) and an abbreviated impactor, the resistance and volume compensator is a robust easy-to-use tool that allows users to refine flow rate rise time profiles for AIM apparatus to ensure comparable conditions for aerosol generation.

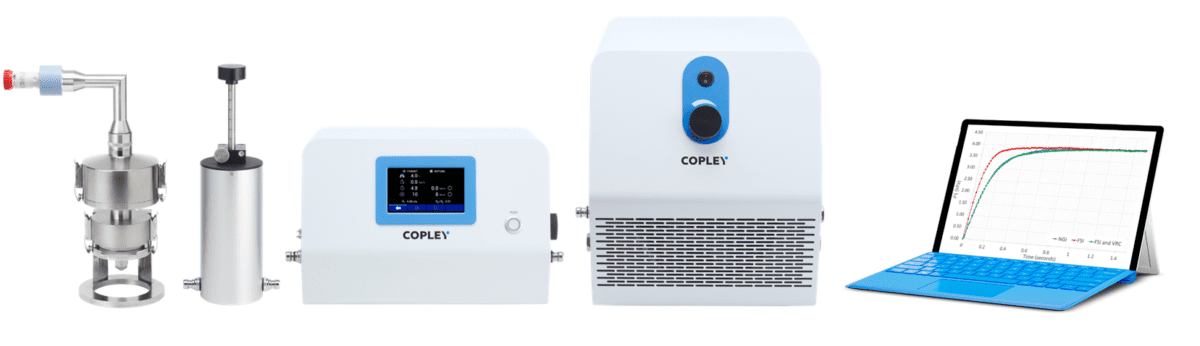

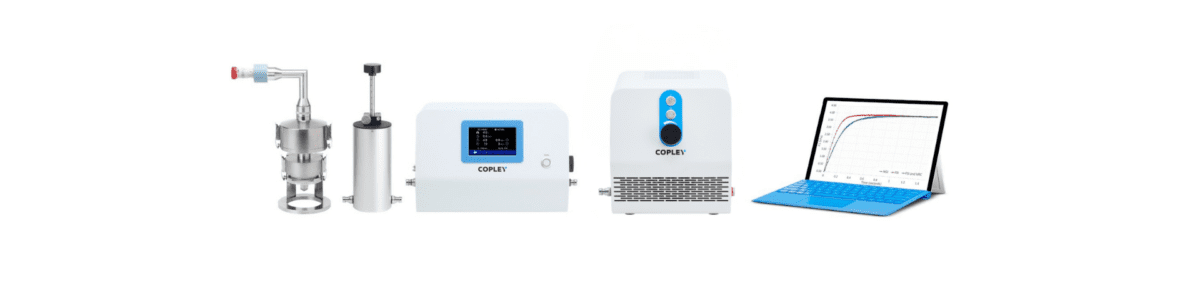

dynamic resistance compensator VRC system image (in-line with Fast Screening Impactor FSI, Critical Flow Controller TPK 100i, High Capacity Pump HCP6 and Laptop showing rise-time profile)
