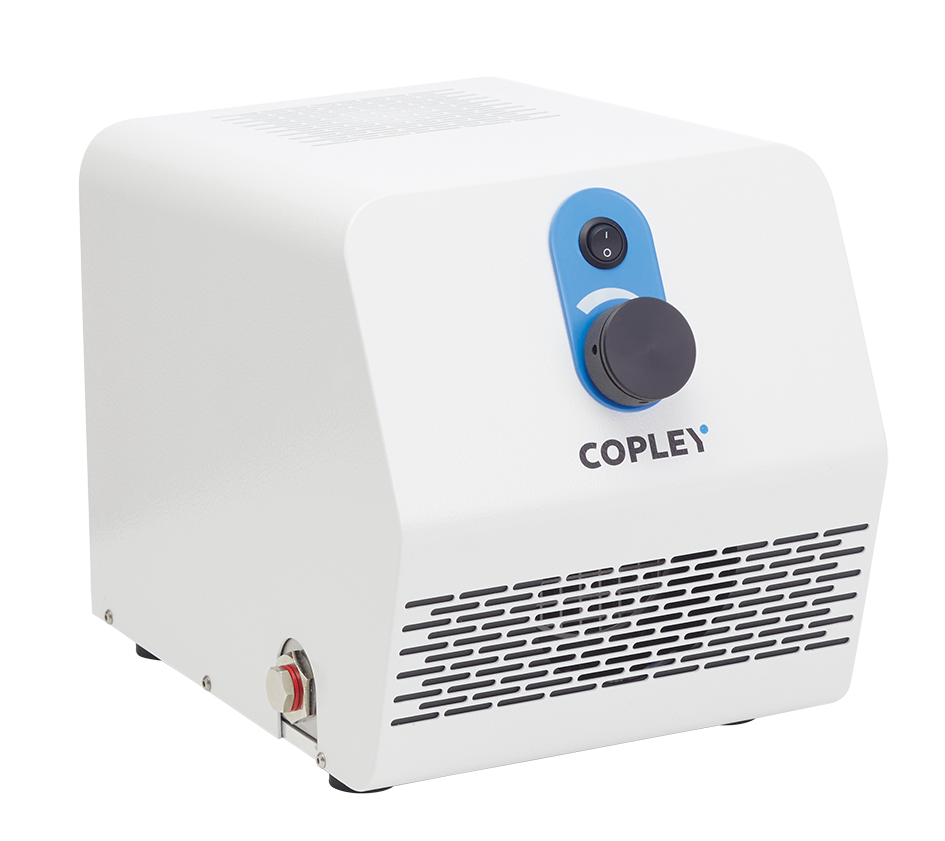

LCP6 – Low Capacity Vacuum Pumps
Designed for optimal operation at low flow rates, the Low Capacity Pump Model LCP6 is ideal for MDIs, nebulisers, ADIs and nasal products tested at 28.3 L/min. The flow rate can be adjusted between 0 and 133 L/min using the control valve on the front of the unit.
Low maintenance
Small unit footprint
Advanced sound insulation
Oil-free
Left and right vacuum inlets – choose where to place pump in syste
Self-sealing compound carbon vanes continually adjust so that the pump effectively performs with ‘as new’ efficiency throughout its service life
|
LCP6 Technical Specifications
|
|
|---|---|
|
Type:
|
Rotary vane
|
|
Lubrication type:
|
Dry
|
|
Max. flow in L/Min (unrestricted):
|
133
|
|
Max. sonic flow through NGI:
|
N/A
|
|
Max. vacuum level:
|
<15 kPa
|
|
Applications:
|
MDIs, Nebulisers, ADIs, Nasal Sprays, Nasal Aerosols, Nasal Powders
|
|
Routine maintenance:
|
None
|
|
Dimensions (w x d x h):
|
270 x 335 x 280 mm
|
