Vacuum Pump
Driving most OINDP testing systems is the vacuum pump. We offer a choice of three pumps dependent on the set-up concerned and the capacity required.
Contact Us
Contact Us

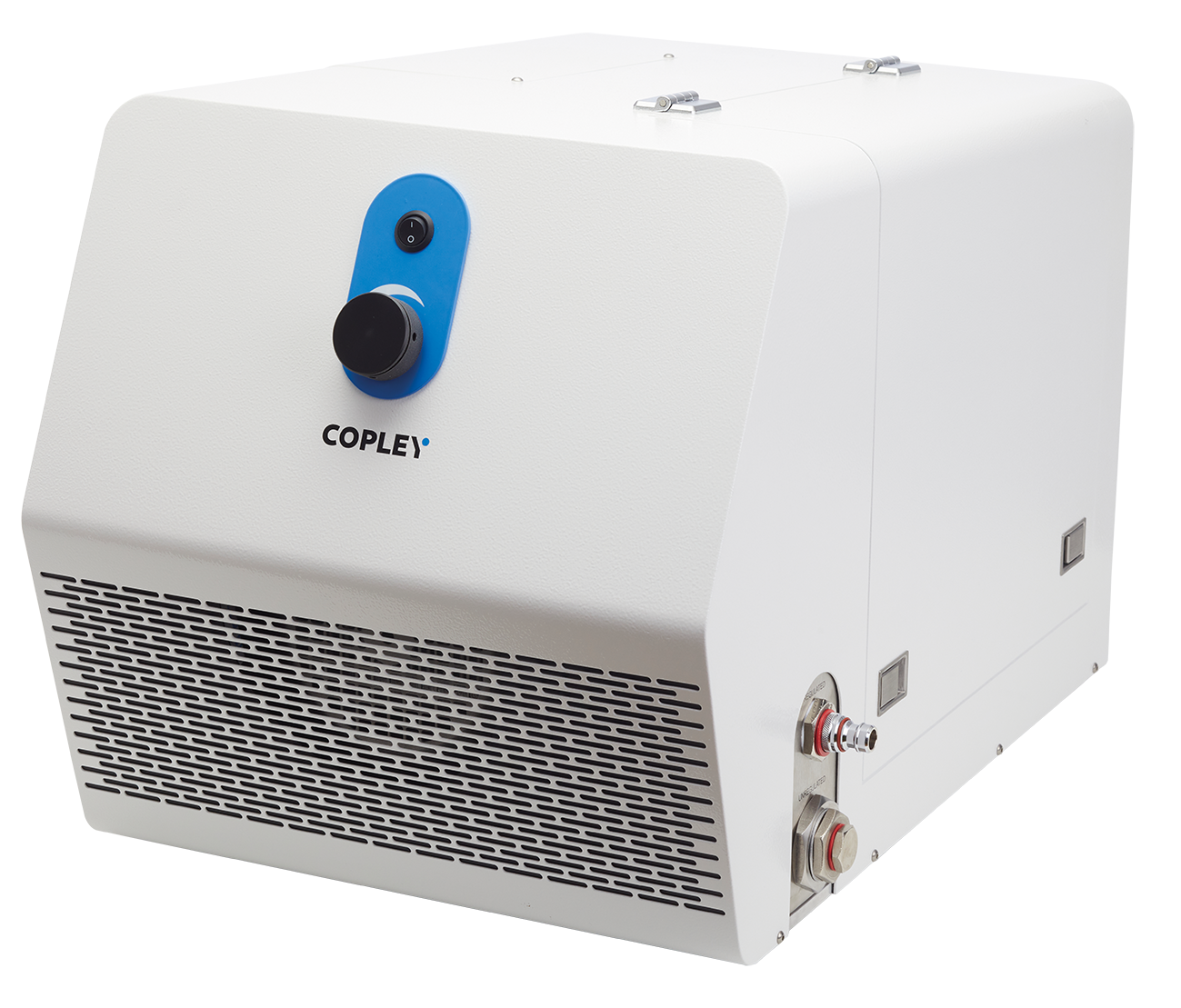

SCP6 – Super Capacity Vacuum Pump
Capable of generating sonic (P3/P2 ≤ 0.5) flow rates through the Next Generation Impactor (NGI) up to 100 L/min, the SCP6 provides a maximum unregulated flow of 683 L/min, ideal for DPI applications. Designed to provide a viable alternative to the use of two HCP6 pumps to provide these conditions, the SCP6 can also be used for MDI, nebuliser and nasal product testing applications via a flow control valve, which regulates the flow rate between 0 and 280 L/min.
Low maintenance
Advanced sound insulation
Oil-lubricated rotary vane
Left and right vacuum inlets – choose where to place pump in system
Dual filtration process ensures there is virtually no oil vapour in the exhaust air, making it suitable for use in a laboratory environment
|
SCP6 Vacuum Pump Technical Specifications
|
|
|---|---|
|
Type:
|
Rotary vane
|
|
Lubrication type:
|
Oil
|
|
Max. flow in L/Min (unrestricted):
|
683
|
|
Max. sonic flow through NGI:
|
100
|
|
Max. vacuum level:
|
<0.1 kPa
|
|
Applications:
|
MDIs, DPIs, Nebulisers, ADIs, Nasal Products
|
|
Routine maintenance:
|
Oil/filter change
|
|
Dimensions (w x d x h):
|
423 x 653 x 455 mm
|
