Benchtop Environmental Chamber

Both Ph. Eur. and USP specifically reference the control of environmental conditions in cases where temperature and/or humidity limits are stated on the product label and/or it is specified in the relevant monograph. However, it is also good practice to implement environmental controls across all DDU and APSD applications to reduce variability and improve the accuracy, sensitivity and reproducibility of data. We offer a range of cost-effective tools designed to help mitigate the impact of localised environmental conditions on OINDP test data integrity.

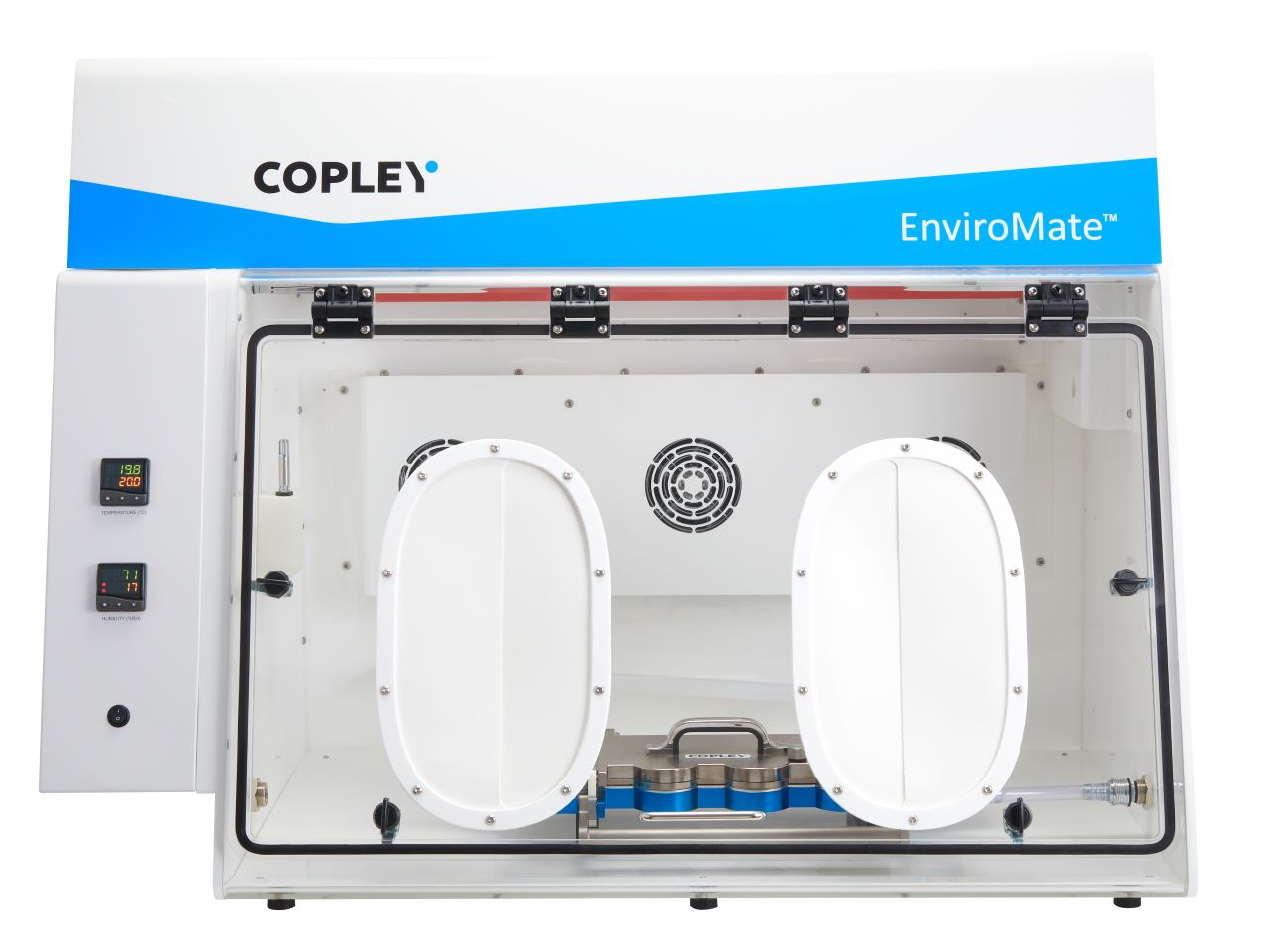

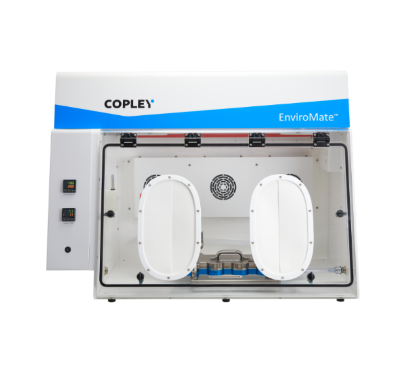

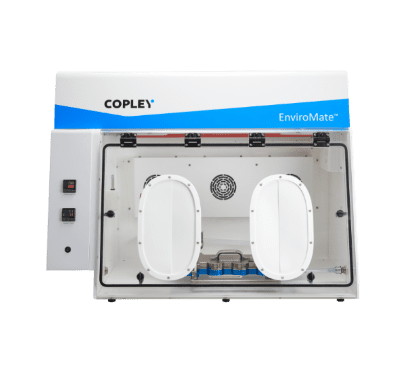

EnviroMate™ – Benchtop Environmental Chamber

Accommodating all types of dose uniformity sampling apparatus and cascade impactor, EnviroMate™ is a cost-effective, compact, benchtop environmental chamber solution for analysts struggling to achieve stable environmental conditions for delivered dose uniformity (DDU) and aerodynamic particle size distribution (APSD) testing. Maintaining uniform temperature and humidity distribution throughout the chamber, whilst the built-in anti-static system minimises the effects of electrostatic charge, EnviroMate provides analysts with consistent environmental control in the immediate test area, enhancing OINDP test data accuracy and repeatability.

  • Designed specifically for OINDP testing

  • Sensitive temperature and relative humidity sensors ensure accurate performance

  • Access ports and quick connectors enable interfacing with externally located ancillaries

  • No routine maintenance required

EnviroMate™ – Technical Specifications
User interface
Digital display with set-point control buttons
Ambient temperature
16 – 28ºC
Temperature control range
17 – 35ºC
Temperature control accuracy
Typically ±2ºC
Ambient humidity
35 – 85% RH
Humidity control range
15 – 85% RH
Humidity control accuracy
Typically ±5% RH
Electrostatic minimisation system
Included as standard
Ancillary connector ports
2 x ports for quick-release connectors (left and right) | 2 x ports for cables (left and right) | 2 x ports for interface with BRS 200i and NGI Cooler™ (right)
Capacity
280 litres
Compressed Air Supply Fitting
6 mm OD Push-Fit
Compressed Air Supply Pressure Requirement
5 to 8 bar (G)
Unit dimensions (w x d x h)
1258 x 761 x 890 mm

EnviroMate™ – Benchtop Environmental Chamber

Play Video

White paper: Establishing a robust environment for inhaler testing

In this white paper, we examine how the poor control of temperature, relative humidity and electrostatics can influence inhaler testing. Separately, we assess their impact on the performance of cascade impactors, concluding with a discussion about solutions, such as EnviroMate™, that can help.

Download the white paper

EnviroMate™ – Example Testing Applications

benchtop environmental chamber, ENVIROMATE

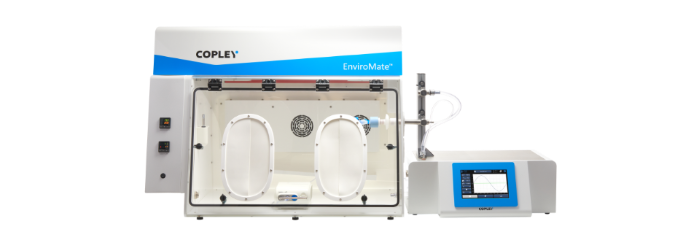

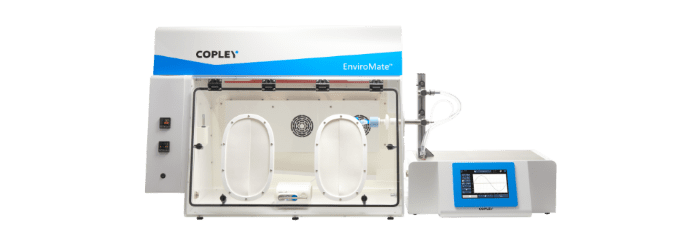

EnviroMate™ with Breathing Simulator BRS 200i for nebuliser testing

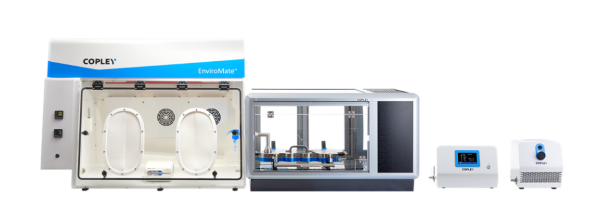

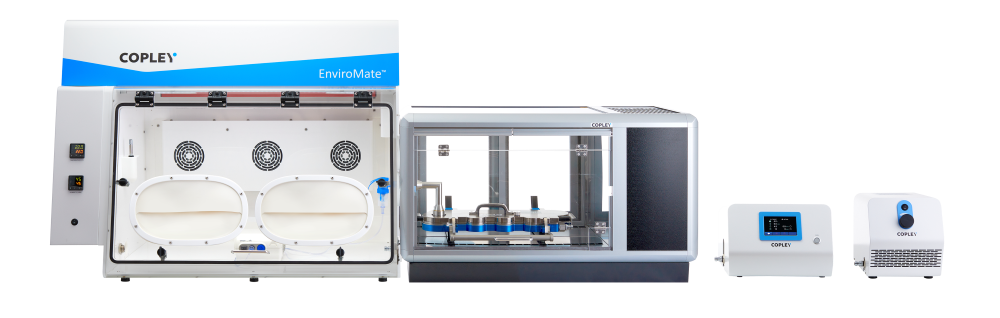

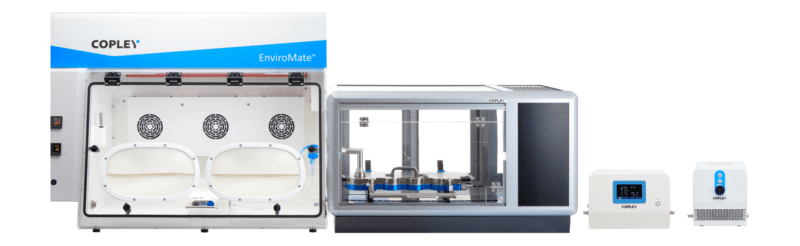

EnviroMate NGI Cooler

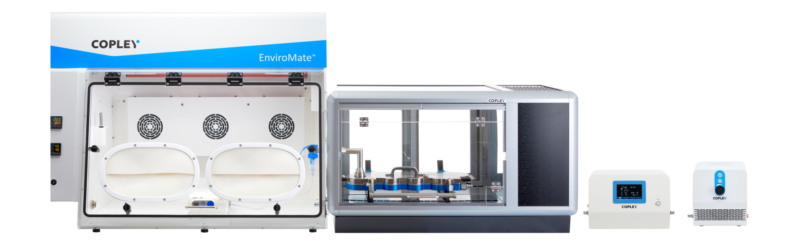

EnviroMate™ with NGI Cooler™ for nebuliser testing
