Vacuum Pumps

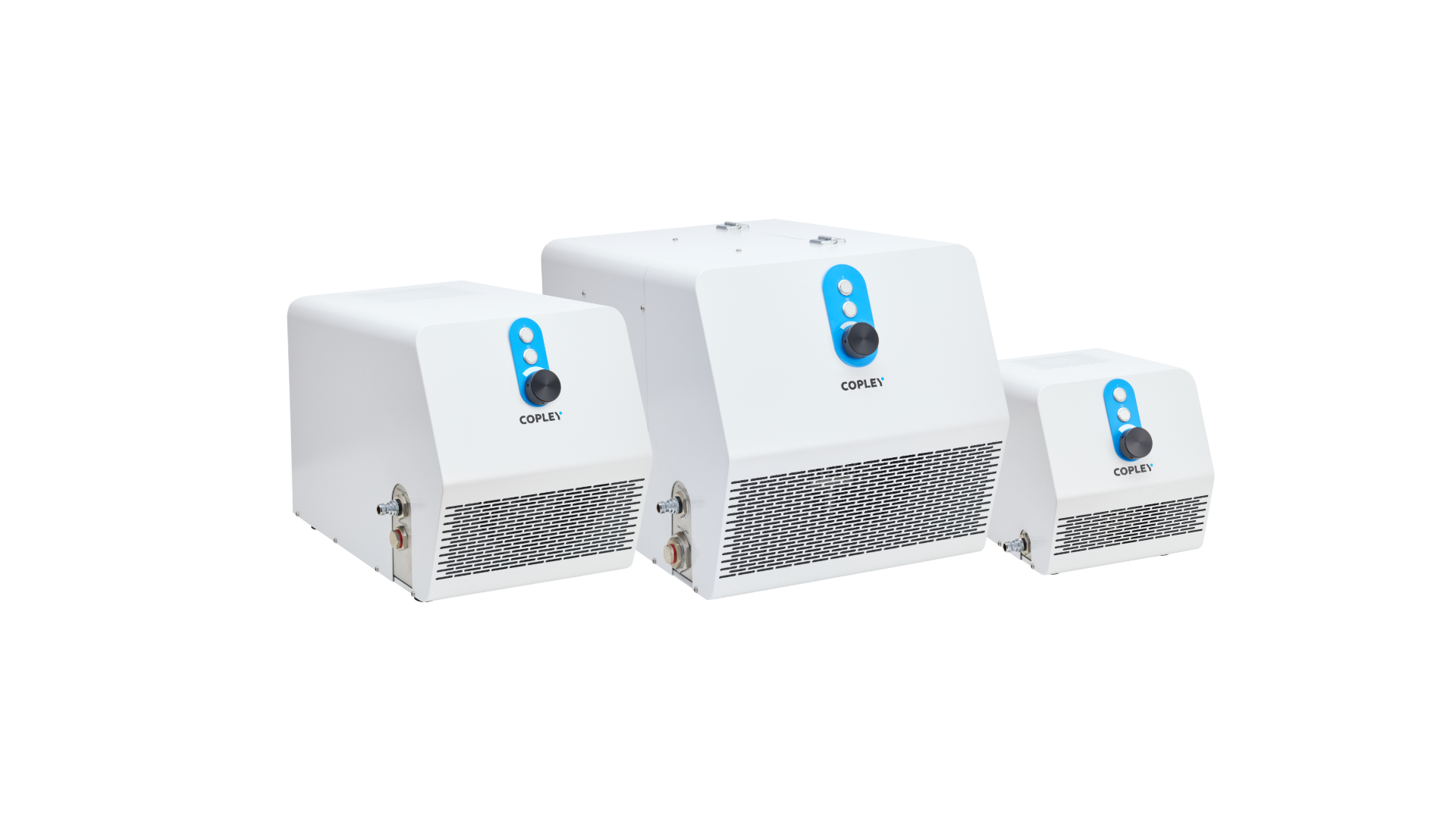

Driving most OINDP testing systems is the vacuum pump. We offer a choice of three pumps dependent on the set-up concerned and the capacity required.
Contact Us
Contact Us

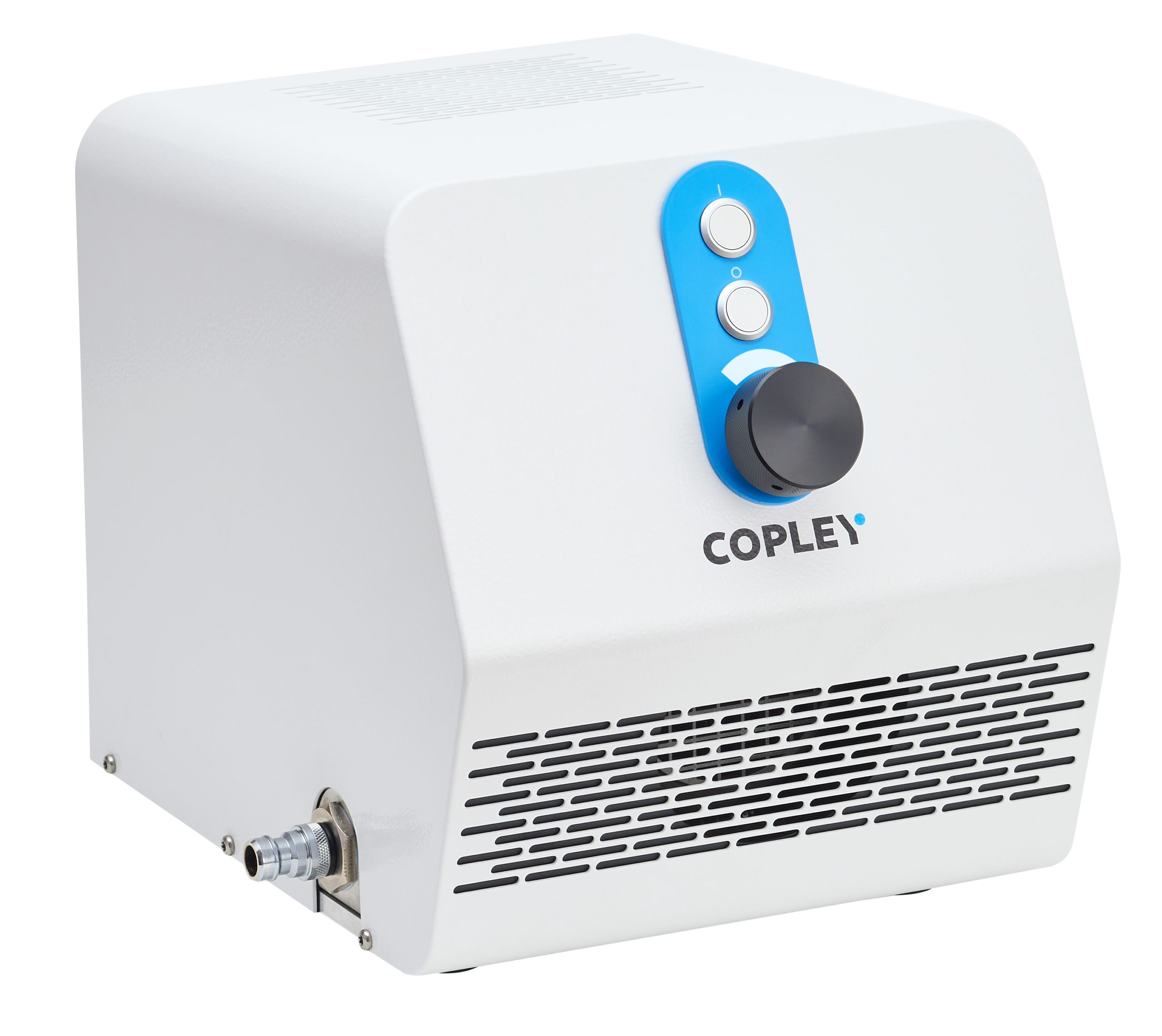

LCP7 – Low Capacity Vacuum Pump
Designed for optimal operation at low flow rates, the Low Capacity Pump Model LCP7 is ideal for MDIs, nebulisers, ADIs and nasal products tested at 28.3 L/min. The flow rate can be adjusted between 0 and 133 L/min using the control valve on the front of the unit.
Low maintenance
Small unit footprint
Advanced sound insulation
Oil-free
Left and right vacuum inlets – choose where to place pump in system
Self-sealing compound carbon vanes continually adjust so that the pump effectively performs with ‘as new’ efficiency throughout its service life
Automatic Vacuum Pump Control with the Critical Flow Controller TPK 200iX®
The LCP7 can be automatically switched on and off by the TPK 200iX during testing, reducing the risk of tests starting without vacuum and helping avoid invalid tests and wasted product. Operating pumps only when needed also reduces unnecessary runtime and noise, helping minimise wear and maintenance requirements.
Discover the TPK 200iX|
LCP7 Technical Specifications
|
|
|---|---|
|
Type:
|
Rotary vane
|
|
Lubrication type:
|
Dry
|
|
Max. flow in L/Min (unrestricted):
|
133
|
|
Max. sonic flow through NGI:
|
N/A
|
|
Max. vacuum level:
|
<15 kPa
|
|
Applications:
|
MDIs, Nebulisers, ADIs, Nasal Sprays, Nasal Aerosols, Nasal Powders
|
|
Dimensions (w x d x h):
|
300 x 360 x 300 mm
|
